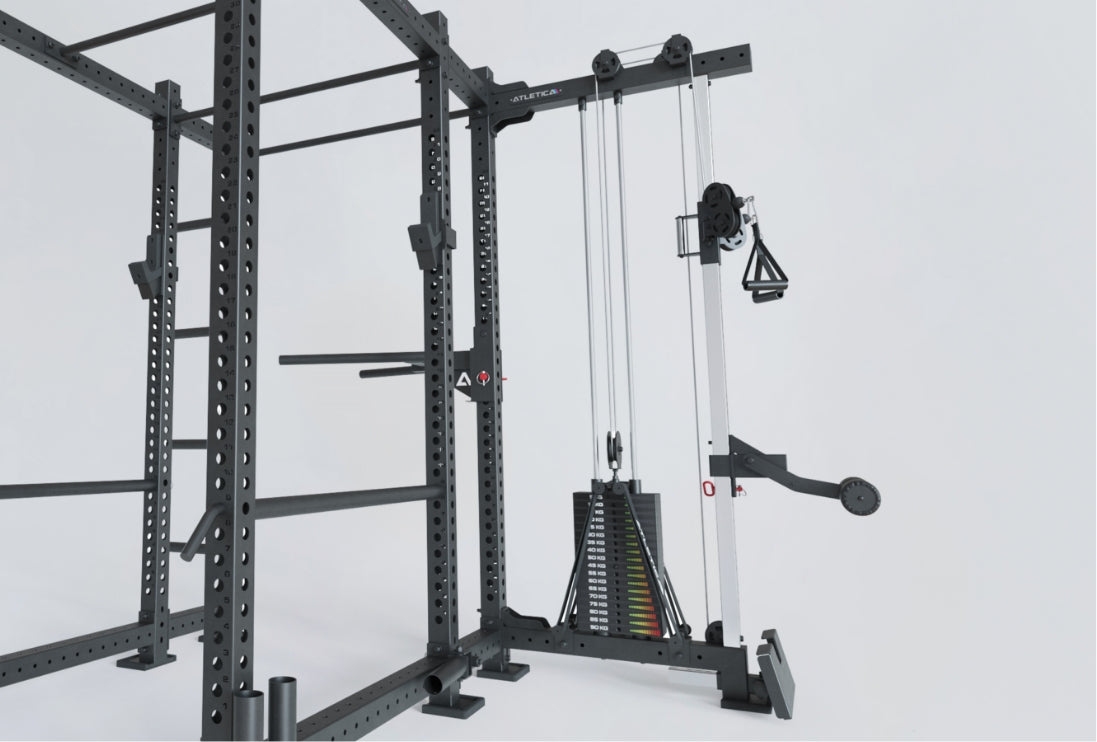

The R8-Raptor PRO Power Rack with cable pull from Atletica
- Our R8-Raptor PRO consists of a squat rack with side cable pull attachment
- It has a cage depth of 123 cm and offers enough freedom of movement to train without restrictions even with a weight bench inside the rack
- Up to three people can easily train simultaneously in front of and in the power rack and on the cable pull without getting in each other's way
R8-Raptor PRO Power Cage Basic Equipment

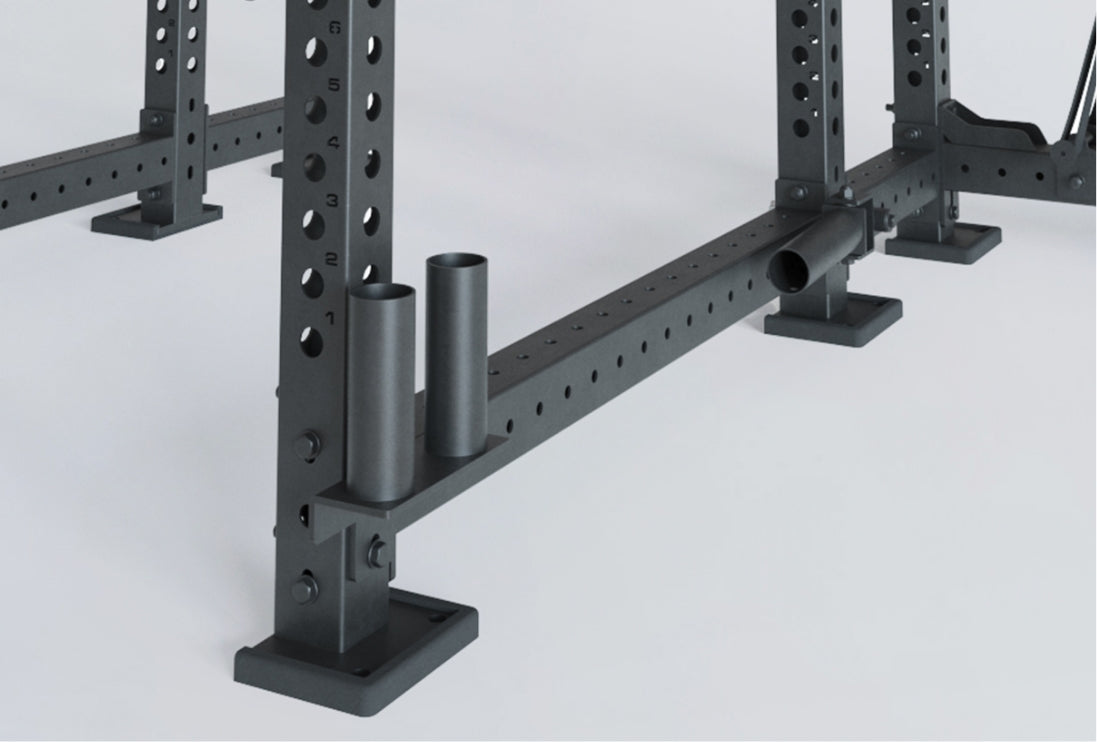

- The basic equipment of the R8-Raptor PRO Power Rack includes, in addition to the cable pull, a dip station , safety racks, reinforced J-hooks, eight weight plate holders, a landmine and a bar holder for the vertical storage of two barbells

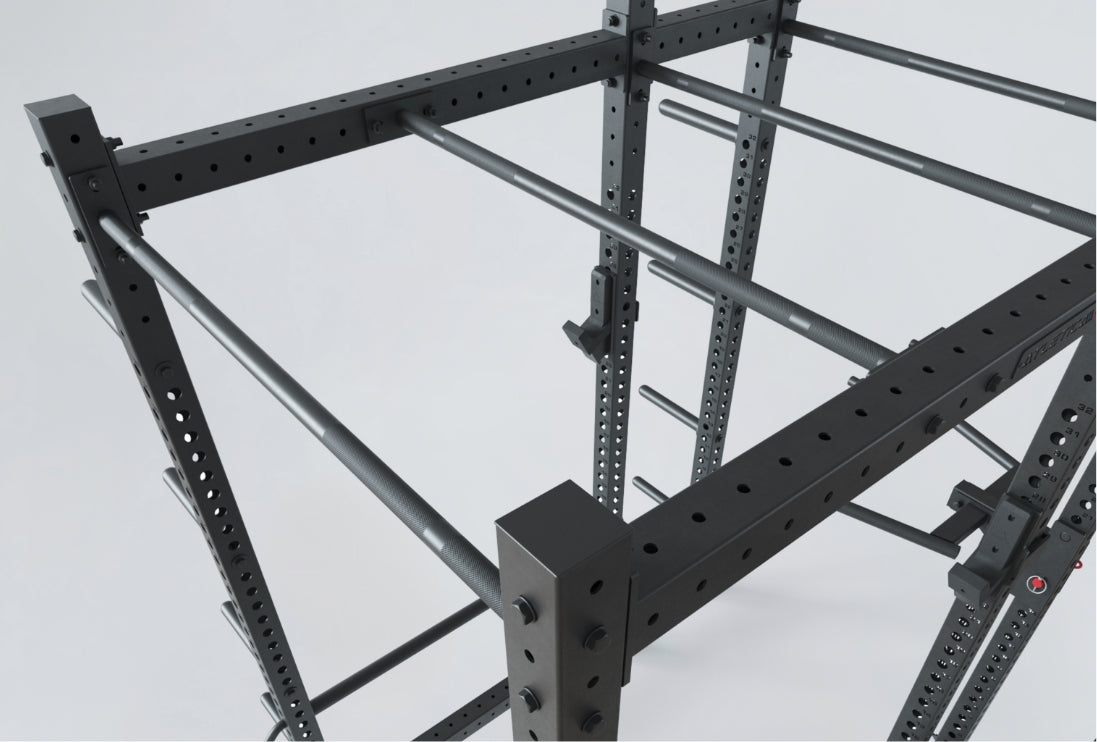

- What makes this squat rack unique is the rung ladder on the top of the cage. This can be customized to suit your personal needs by adding additional pull-up bars .
- It is ideal for grip strength training by simply hanging along it

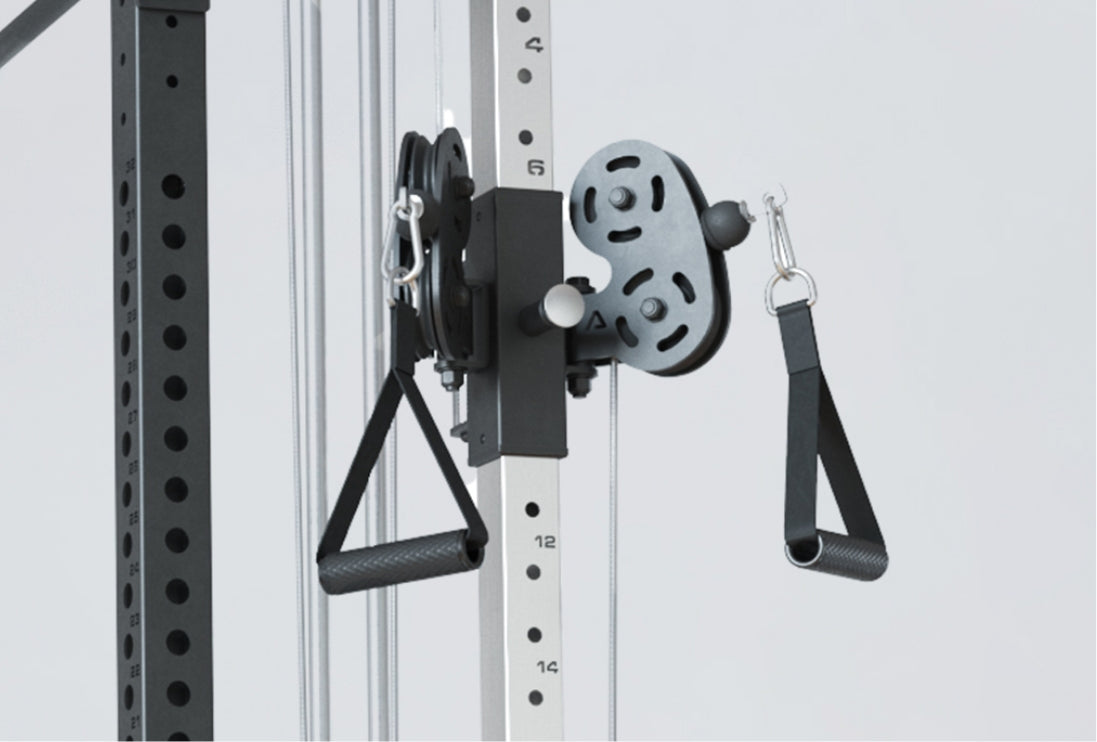

The highlight: Cable pull system of the extra class
- Another highlight is the Cable Pull - it can be adjusted in height and is equipped with a footrest for rowing exercises and plug-in weights

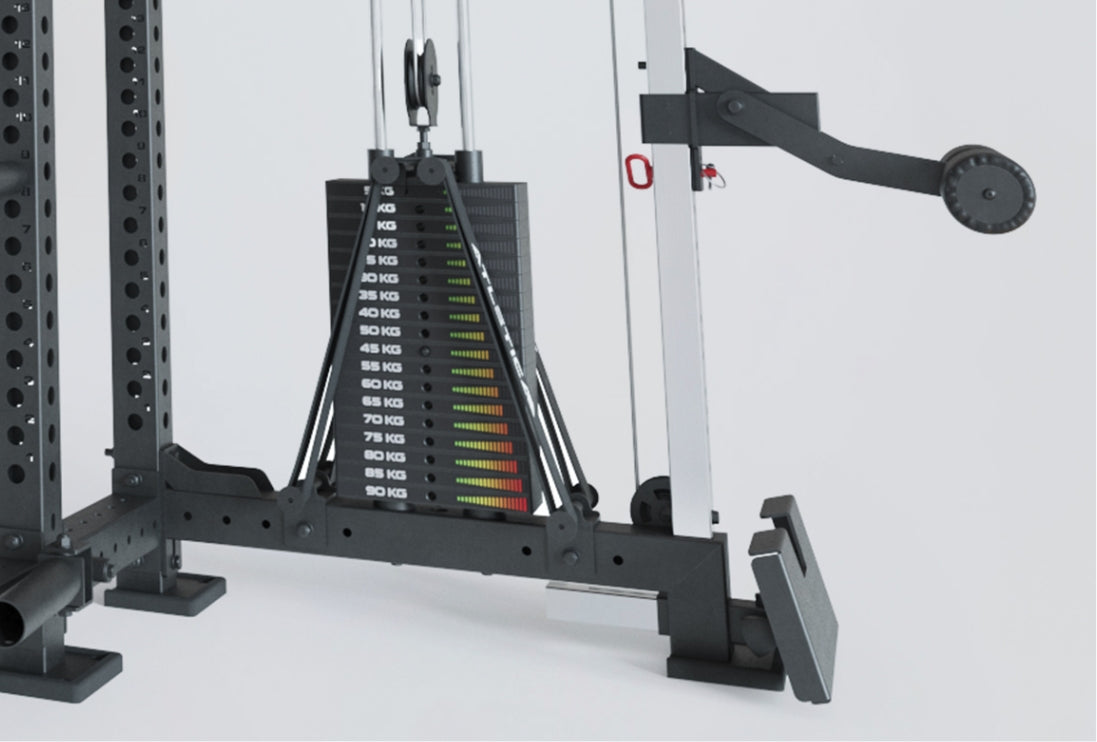

- The training weight is easily and conveniently adjusted using a pin by inserting it into the desired position in the weight block
- The block weighs a total of 90 kg and is divided into 18 slices of 5 kg each. This allows fine adjustment without much effort
- The two pulleys work independently of each other, can be used for unilateral exercises and complement your training with countless cable pull exercises
- The gear ratio is 1:2 when you pull on one handle and 1:1 when you pull on both simultaneously
Buy R8-Raptor PRO Power Rack with cable pull from Atletica
- The basic frame of the R8-Raptor PRO with a width of 123 cm is perfect for the use of Atletica barbells , provided an internal dimension of approximately 131 cm is given
- This equipment including weight block in combination with a steel profile of 75 x 75 x 3 mm and the enlarged base area result in a dead weight of 376 kg and enormous stability
- In addition to the very attractive color appearance, it also offers better metal properties, such as increased corrosion protection
- Get your R8-Raptor PRO power rack with cable pull from Atletica now – the next step to your dream body is just a click away!
Article ID
SKU | R8-Raptor-PRO |
EAN | 4260754394640 |
Color | Matt black |
Maximale Belastung
1500
Kg
600
Kg
450
Kg
Dimensions & footprint
Height | 226cm |
Width | 265cm (30cm weight plate holders + 123cm rack + 112cm cable pull side attachment) |
depth | 173cm (can be reduced to 143cm by using 78cm crossbars) |
Net weight | 369kg |
Load limits
Upright posts and crossbars | Up to 1,500kg, tensile strength and PSI load tested |
Monkey Bar | Up to 400kg, tensile strength test tested |
J-Hooks Type 2 | Up to 550kg per J-Hook, weight drop test tested |
Pin-Pipe-Safety | Up to 450kg, weight drop test |
Dip Bar | Up to 600kg, tensile strength test tested |
Cable pull | Load capacity up to 450kg, suitable for 50mm and 30mm weight plates |
Cable pull
Type of weight loading | Plug-in weight |
Weight block subdivision | 1x90kg |
gradation | 5kg |
Gear ratio | 1:1 |
roll | plastic |
Cable | Quadruple coated steel cable |
Cable pull rotation | 180° |
Base frame
Steel type | Alloy steel 11 gauge |
Square tube | 75mmx75mm |
Metal thickness | 3mm |
Coating | Double powder coating |
Corrosion resistance | Zinc alloy |
Hole Pattern & Compatibility
Hole pattern | 50mm |
Hole (pin) | 25mm |
Hole centre distance | 50mm |
Numbering and scaling | 32-way laser engraved + 9-way ultra-fine adjustment CrossBars |
Weight Plate Compatibility | 30mm and 50mm |
Compatibility ATLETICA | All ATLETICA R8 attachments - modular concept |
Upright 226cm - Schwarz - mit Bodenschutz | 3x Paar | €867.00 | |
Crossbar 108cm - Schwarz | 2x Paar | €298.00 | |
Crossbar 42cm - Schwarz | 2x Paar | €258.00 | |
Monkeybar 108cm - mit Gripgravur | 4x | €236.00 | |
J-Hooks Type 2 - Heavy Duty | 1x Paar | €79.00 | |
Pin-Pipe Safety - 108cm | 1x Paar | €79.00 | |
Gewichts-Pins 30cm | 4x Paar | €256.00 | |
Dip Barren | 1x | €109.00 | |
Double Bar Holder | 1x | €59.00 | |
Pro Pulley | 1x | €949.00 | |
Landmine | 1x | €59.00 | |
Gesamtpreis Einzelgeräte | €3,338.00 | ||
Exklusiver Setpreis | €2,359.00 | ||
Sie sparen | €979.00 |
Warranty & Certification
Guarantee base frame | LifeTime |
Warranty attachments | 5 years |
Permit | EN 20957 S , studio and commercial use possible |
Delivery & Assembly
Delivery costs | Free in Germany |
Delivery | Freight delivery on pallet |
Delivery type | Free curbside ticket |
Appointment | Email announcement with date selection |
Assembly time | 2h, two-man |
Required tools | Wrench set 13, 17, 19 |
Service & Return Policy
refund policy | 100 days after purchase |
Return costs | Free of charge |
Organisation of the return | Collection by forwarding agent with desired date |
Service included
Advice on training plan and equipment use | 1h online consultation included |
Quick Troubleshoot Service | 7-day remote support service |
On-site service | Nationwide |
