Power rack with lat pulldown, dip station and 5 other attachments
- A long matching lat pulldown handle and a short rowing handle are also included
- R7-Cage is available in two heights, 200 cm and 220 cm
- With a total height of 200 cm, this rack also fits in low (basement) rooms
R7-Cage basic equipment
- The Atletica R7-Cage is based on the R7-Base Squat Rack with all associated attachments such as a lat pull-down station with integrated rowing station, multi-grip pull-up bar and J-hooks
- Compared to the R7 Base Plate, this version also comes with a Dip Station, Spotter Arms and a Landmine
- Thanks to the included adapters, the weight sled can be loaded with both 30 and 50 mm weight plates
- With 1.25 kg or 2.5 kg weight plates, fine adjustment of the training weight is also possible
Squat Rack Accessories
- If required, additional attachments can be purchased and added to the R7 Cage Power Rack
- This allows you to continually supplement your training with new exercises
- The use of attachments from different manufacturers is also possible, provided that they have a profile of 70x70 mm and a pin diameter of 20 mm
- Accessories that use two or more pins for attachment must also have a center-to-center distance of 5 cm
Buy R7-Cage Power Rack
- Thanks to its versatility and numerous options for a multifunctional full-body workout, the Squat Rack is the ideal equipment for any home gym
- The expansion options and diverse accessories ensure that our devices can be individually adapted to different needs
- Experience a new dimension of home fitness by getting your R7-Cage Power Cage with Lat Pulldown from Atletica today
Article ID
SKU | R7_Cage_High |
EAN | 4260754397481 |
Color | Black |
Maximale Belastung
1300
Kg
800
Kg
450
Kg

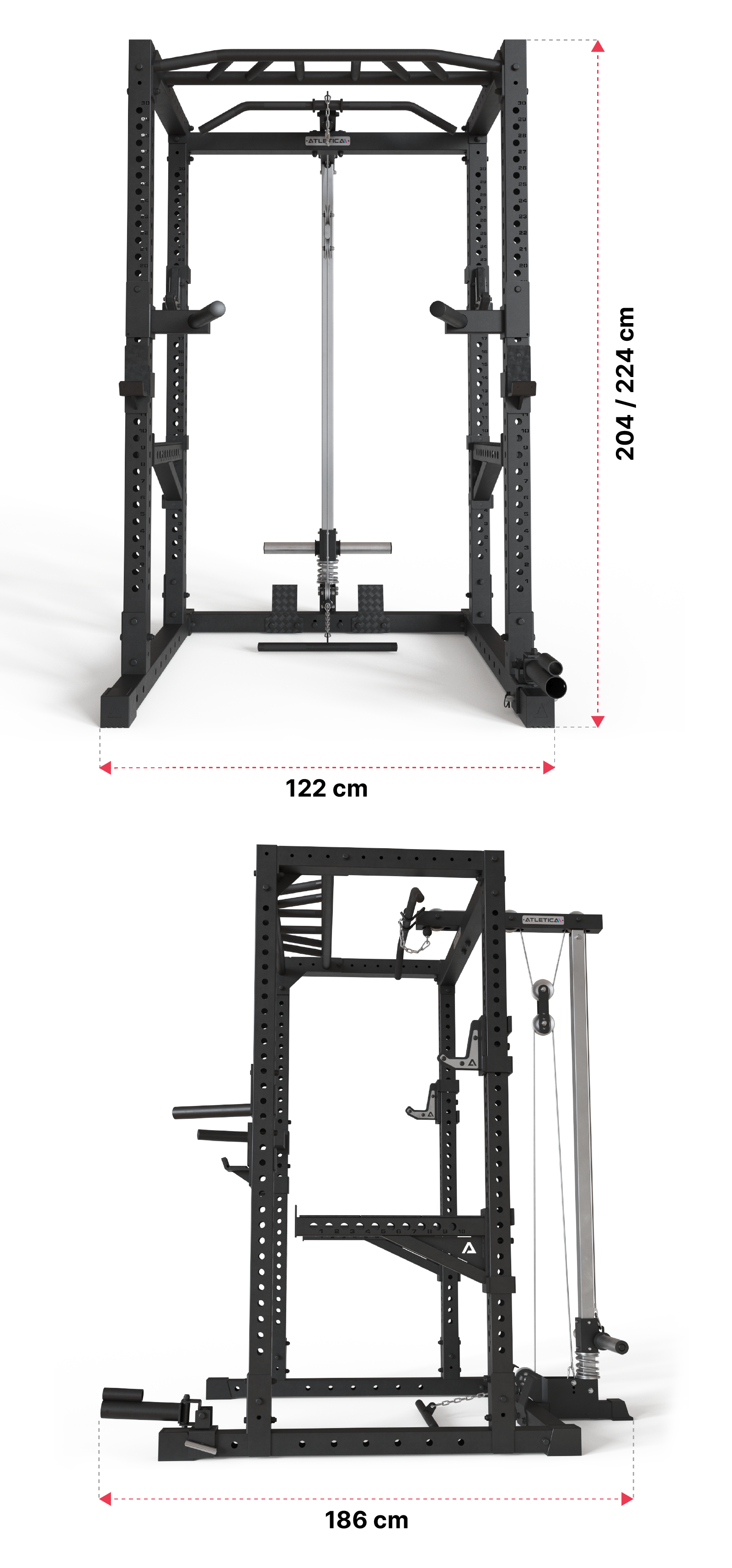

Dimensions & footprint
Height | 204/224cm |
Width | 122cm |
depth | 186cm (with the front feet) |
Net weight | 155kg |
Load limits
Power Rack | 1,300kg |
J-Hooks | 450kg |
Performance J-Hooks | 550kg per J-Hook, weight drop test tested |
Multi Grip Bar | Up to 800kg, tensile strength tested |
Lat pulldown with rowing unit | 450kg |
Spotter Arms | Up to 550kg per pair〡Weight drop test tested |
Dip station | Up to 600kg, tensile strength test tested |
Base frame
Steel type | Alloy steel 11 gauge |
Square tube | 70mmx70mm |
Metal thickness | 2mm |
Coating | Double powder coating |
Corrosion resistance | Zinc alloy |
Cable pull
Type of weight loading | Plate Load |
Gear ratio | 1:1 |
roll | plastic |
Cable | Quadruple coated steel cable |
Cable pull rotation | 180° |
Hole Pattern & Compatibility
Hole pattern | 50mm |
Hole (pin) | 20mm |
Hole centre distance | 50mm |
Numbering and scaling | 32-way laser engraved + 9-way ultra-fine adjustment CrossBars |
Weight Plate Compatibility | 30mm and 50mm |
Compatibility ATLETICA | All ATLETICA R7 attachments - modular concept |
Plate Loaded Power Rack | 1x |
J-Hooks | 1x pair |
J-Hook's Performance | 1x pair |
Multi Grip Bar | 1x |
Lat pulldown with rowing unit | 1x |
32mm lat pulldown bar with knurling (incl. chain) | 1x |
32mm rudder bar with knurling | 1x |
R7 Landmine | 1x |
R7 Spotter Arms | 1x pair |
R7 Dip Station | 1x |
Warranty & Certification
Guarantee base frame | LifeTime |
Warranty attachments | 5 years |
Permit | EN 20957 S , studio and commercial use possible |
Delivery & Assembly
Delivery costs | Free in Germany |
Delivery | Freight delivery on pallet |
Delivery type | Free curbside ticket |
Appointment | Email announcement with date selection |
Assembly time | 2h, two-man |
Required tools | Wrench set 13, 17, 19 |
Service & Return Policy
refund policy | 100 days after purchase |
Return costs | Free of charge |
Organisation of the return | Collection by forwarding agent with desired date |
Service included
Advice on training plan and equipment use | 1h online consultation included |
Quick Troubleshoot Service | 7-day remote support service |
On-site service | Nationwide |
Description
Power rack with lat pulldown, dip station and 5 other attachments
- A long matching lat pulldown handle and a short rowing handle are also included
- R7-Cage is available in two heights, 200 cm and 220 cm
- With a total height of 200 cm, this rack also fits in low (basement) rooms
R7-Cage basic equipment
- The Atletica R7-Cage is based on the R7-Base Squat Rack with all associated attachments such as a lat pull-down station with integrated rowing station, multi-grip pull-up bar and J-hooks
- Compared to the R7 Base Plate, this version also comes with a Dip Station, Spotter Arms and a Landmine
- Thanks to the included adapters, the weight sled can be loaded with both 30 and 50 mm weight plates
- With 1.25 kg or 2.5 kg weight plates, fine adjustment of the training weight is also possible
Squat Rack Accessories
- If required, additional attachments can be purchased and added to the R7 Cage Power Rack
- This allows you to continually supplement your training with new exercises
- The use of attachments from different manufacturers is also possible, provided that they have a profile of 70x70 mm and a pin diameter of 20 mm
- Accessories that use two or more pins for attachment must also have a center-to-center distance of 5 cm
Buy R7-Cage Power Rack
- Thanks to its versatility and numerous options for a multifunctional full-body workout, the Squat Rack is the ideal equipment for any home gym
- The expansion options and diverse accessories ensure that our devices can be individually adapted to different needs
- Experience a new dimension of home fitness by getting your R7-Cage Power Cage with Lat Pulldown from Atletica today
Article ID
SKU | R7_Cage_High |
EAN | 4260754397481 |
Color | Black |
Details
Maximale Belastung
1300
Kg
800
Kg
450
Kg
Dimensions & footprint
Height | 204/224cm |
Width | 122cm |
depth | 186cm (with the front feet) |
Net weight | 155kg |
Load limits
Power Rack | 1,300kg |
J-Hooks | 450kg |
Performance J-Hooks | 550kg per J-Hook, weight drop test tested |
Multi Grip Bar | Up to 800kg, tensile strength tested |
Lat pulldown with rowing unit | 450kg |
Spotter Arms | Up to 550kg per pair〡Weight drop test tested |
Dip station | Up to 600kg, tensile strength test tested |
Base frame
Steel type | Alloy steel 11 gauge |
Square tube | 70mmx70mm |
Metal thickness | 2mm |
Coating | Double powder coating |
Corrosion resistance | Zinc alloy |
Cable pull
Type of weight loading | Plate Load |
Gear ratio | 1:1 |
roll | plastic |
Cable | Quadruple coated steel cable |
Cable pull rotation | 180° |
Hole Pattern & Compatibility
Hole pattern | 50mm |
Hole (pin) | 20mm |
Hole centre distance | 50mm |
Numbering and scaling | 32-way laser engraved + 9-way ultra-fine adjustment CrossBars |
Weight Plate Compatibility | 30mm and 50mm |
Compatibility ATLETICA | All ATLETICA R7 attachments - modular concept |
Scope of delivery
Plate Loaded Power Rack | 1x |
J-Hooks | 1x pair |
J-Hook's Performance | 1x pair |
Multi Grip Bar | 1x |
Lat pulldown with rowing unit | 1x |
32mm lat pulldown bar with knurling (incl. chain) | 1x |
32mm rudder bar with knurling | 1x |
R7 Landmine | 1x |
R7 Spotter Arms | 1x pair |
R7 Dip Station | 1x |
warranty
Warranty & Certification
Guarantee base frame | LifeTime |
Warranty attachments | 5 years |
Permit | EN 20957 S , studio and commercial use possible |
Delivery & Assembly
Delivery costs | Free in Germany |
Delivery | Freight delivery on pallet |
Delivery type | Free curbside ticket |
Appointment | Email announcement with date selection |
Assembly time | 2h, two-man |
Required tools | Wrench set 13, 17, 19 |
Service & Return Policy
refund policy | 100 days after purchase |
Return costs | Free of charge |
Organisation of the return | Collection by forwarding agent with desired date |
Service included
Advice on training plan and equipment use | 1h online consultation included |
Quick Troubleshoot Service | 7-day remote support service |
On-site service | Nationwide |
