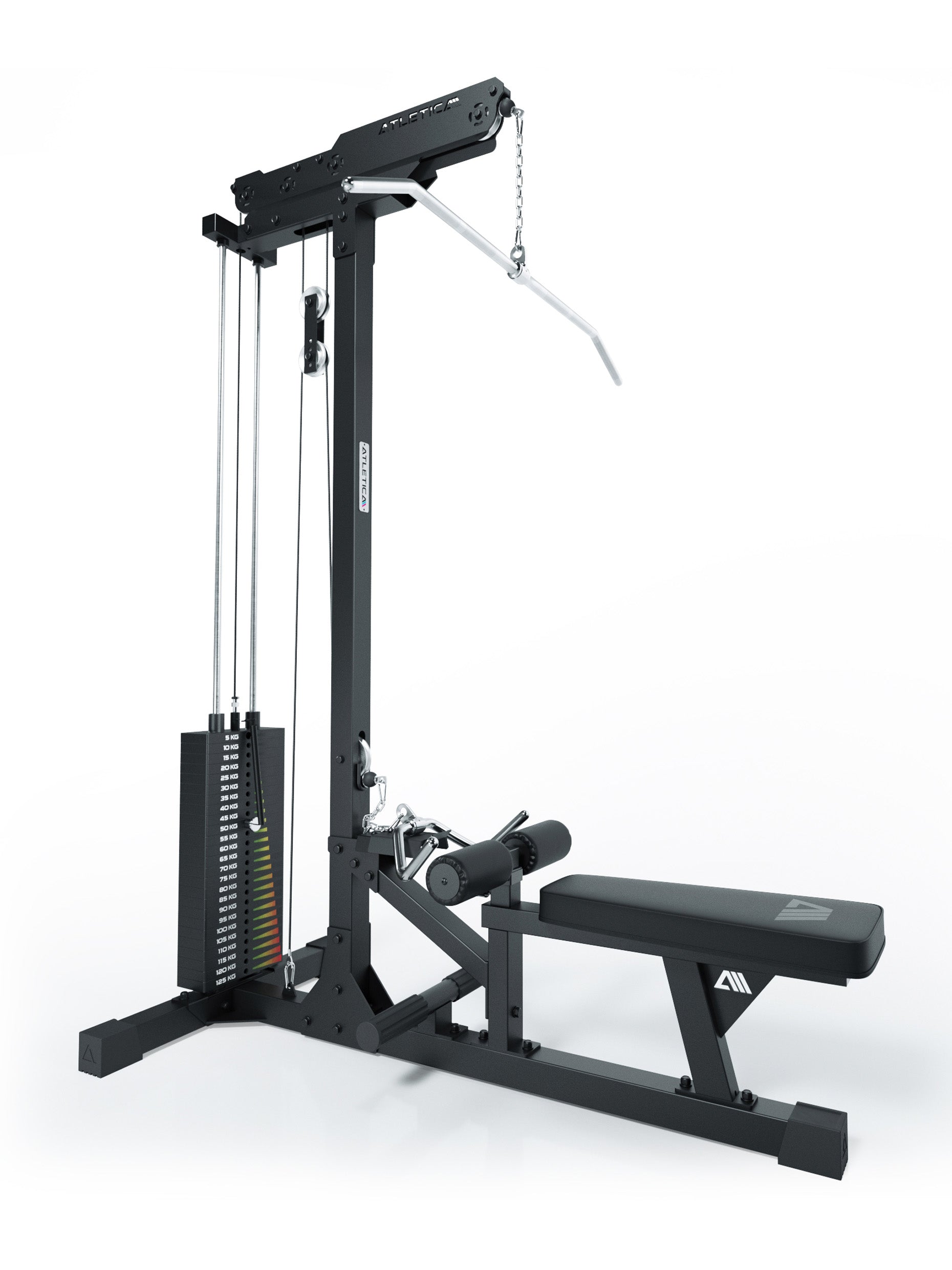

A must for every back workout
- A lat pulldown machine belongs in every home gym because it allows a whole range of back exercises
- Different grips and pulling angles can be used to continually set new training stimuli
- The biceps acts as an auxiliary muscle in all pull exercises and is also strengthened and shaped in this way
- Our lat pulldown is studio-certified and will enhance any demanding home gym with its premium quality
125 kg plug-in weight for quick weight adjustment
- The heart of our lat pulldown is the 125 kg weight block
- This is divided into 25 x 5 kg weight plates
- This allows the training weight to be adjusted very precisely and in a matter of seconds
- The connection is made via a pin made of stainless steel
- The extremely attractive stickers with the weight information are supplied as standard
Locked guide rollers in the frame
- The guide rollers are integrated in the main frame and locked
- Your benefits:
- Dust protection of the most important guide rollers enables smooth running of the cable pull system for years
- The machine height is not increased by an attached roller attachment
- Higher range of motion in lat pulldown exercises
1:1 gear ratio and maximum range of motion
- The gear ratio is 1:1
- This means that there is no pulley principle here and the inserted weight reaches the handle undiminished
- The height is 220 cm and allows even tall people the full range of motion

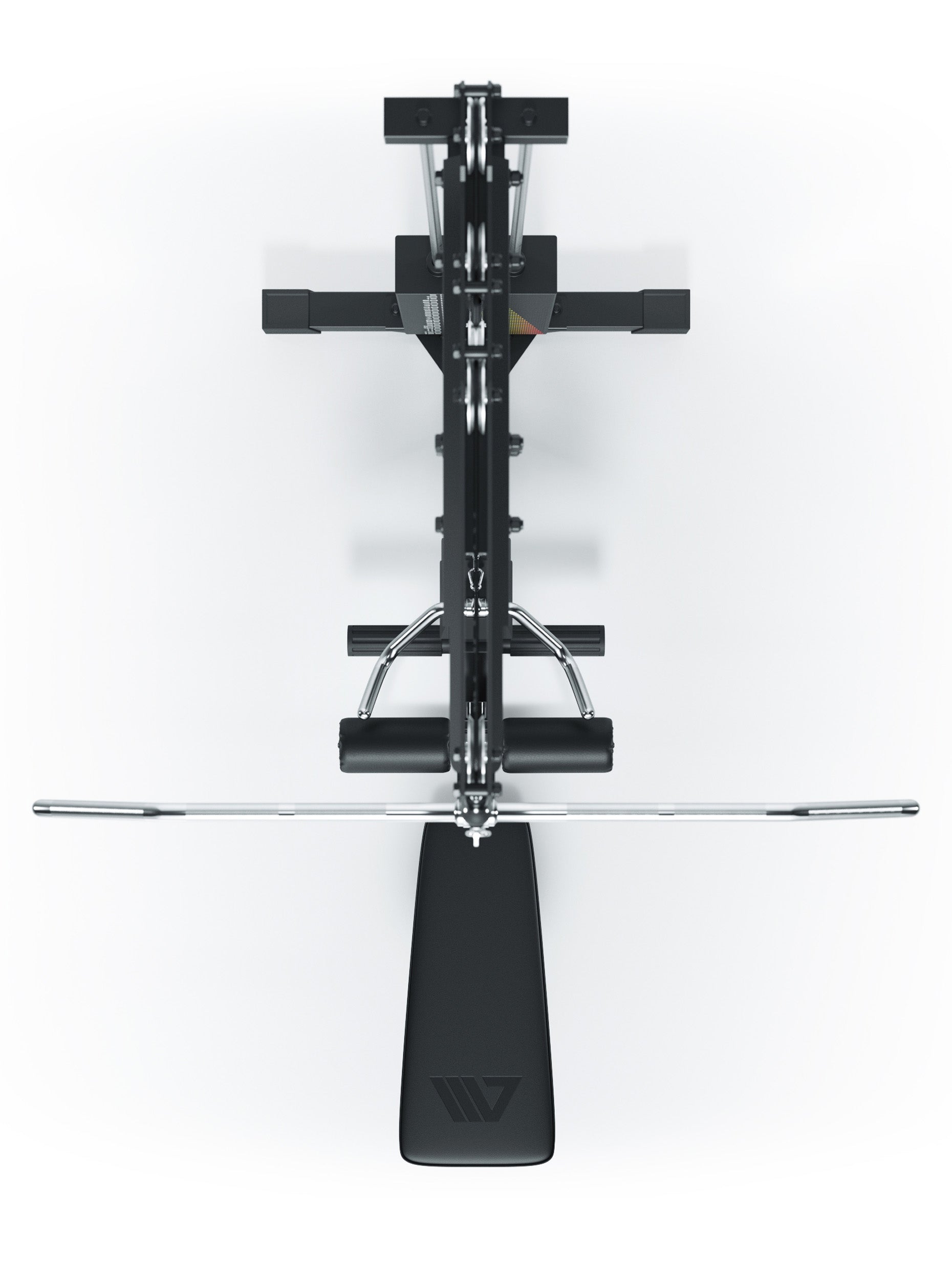

- In terms of floor space, our lat pulldown is very frugal with 157 x 83 cm and is therefore also suitable for small home gyms
Excellent running characteristics
- The device is fitted with high-quality aluminium rollers, the ball bearings are pressed and contribute to the quiet and smooth running
- The result is silky smooth running properties and a training feeling like in the gym
Foam padding for optimal comfort
- The seat and leg pads are made of a very durable foam, which is also often used in commercial gyms - it offers excellent support and comfort alike
- The leg pads can be adjusted in four different heights using a pop pin, thus adapting to every body type
- When rowing, integrated footrests ensure that you can move heavy weights without being pulled forward
Steel cables are nylon coated and heavy-duty
- If the 125 kg stacking weight is not enough for you, you can safely use our Weight Stack Pin to load additional weight plates without the ropes breaking
- In this way, the weight jumps can be almost halved - our Weight Stack Pin weighs 2 kg and is therefore ideal for progressive increases and overcoming plateaus
- The feet are provided with a floor protection made of non-slip rubber, although slipping is not to be feared due to the weight of 207 kg
A noble look that reflects the quality
- All components are kept in a simple but beautiful black - this means our lat pulldown fits harmoniously into any training environment
- The high-quality powder coating protects the steel frame from damage and thus also from corrosion and rust
- The delivery includes a lat pull-down bar and a rowing handle - both handles have been finished with a hard chrome layer and round off the visually harmonious overall picture
Article ID
SKU | K_LAT_125kg_ALU |
EAN | 4260754391823 |
Color | Matt black |
Type of power station | Lat pulldown with rowing station |
Type of loading | Plug-in weights |
logo | Laser cut logo |

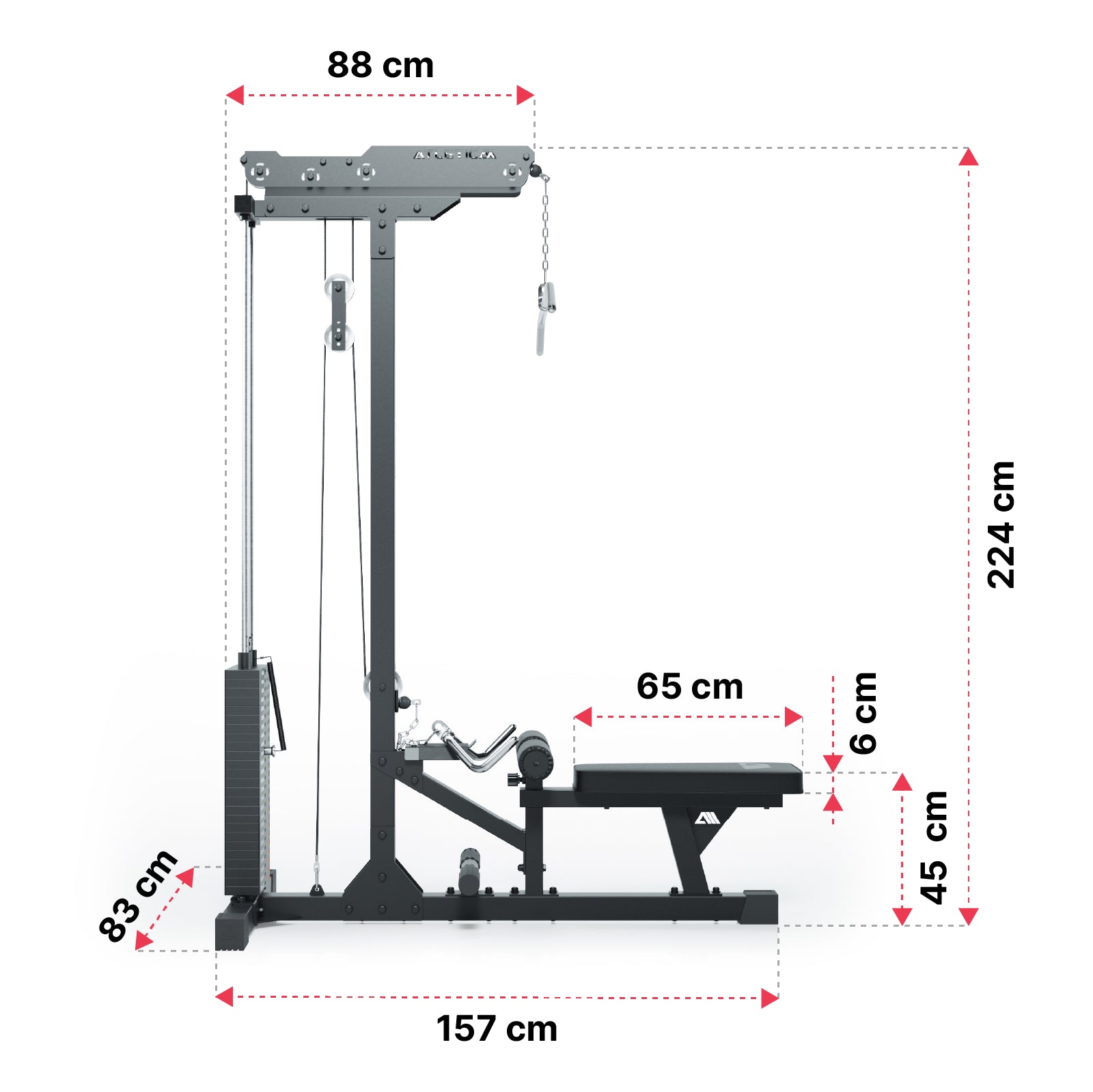

Dimensions & footprint
Height | 224cm |
Width of the machine | 83cm |
depth | 157cm |
Net weight | 207kg |
Characteristics
Leg pad adjustability | 4 levels with a pop pin |
Load limits
Lat pulldown | Up to 450kg, tensile strength test tested |
Cable pull
Weight block | 1x125kg |
Gear ratio | 1:1 |
roll | aluminum |
Roll storage | Protected steel ball bearings |
Cable | Quadruple coated steel cable |
Cable pull rotation | 180° |
Base frame
Steel type | Alloy steel 11 gauge |
Square tube | 50mmx50mm |
Metal thickness | 3mm |
Coating | Double powder coating |
Corrosion resistance | Zinc alloy |
Lat pulldown | 1x |
Leg Blocker | 1x |
Lat pulldown handle | 1x |
Rowing handle | 1x |
Integrated Bank | 1x |
Warranty & Certification
Guarantee base frame | LifeTime |
Warranty attachments | 5 years |
Permit | EN 20957 S , studio and commercial use possible |
Delivery & Assembly
Delivery costs | Free in Germany |
Delivery | Freight delivery on pallet |
Delivery type | Free curbside ticket |
Appointment | Email announcement with date selection |
Assembly time | 2h, two-man |
Required tools | Wrench set 13, 17, 19 |
Service & Return Policy
refund policy | 100 days after purchase |
Return costs | Free of charge |
Organisation of the return | Collection by forwarding agent with desired date |
Service included
Advice on training plan and equipment use | 1h online consultation included |
Quick Troubleshoot Service | 7-day remote support service |
On-site service | Nationwide |
