R7 Rider | Plate-Loaded Version

Sale Price619,00€
Squat Rack with integrated Lat Pulldown. Modularly expandable with Deadlift Station. Available in two heights. Plate-loaded

Latzug-/Rudereinheit: Weight Stack Plate Loaded Without
Combine it with:

Squat Rack R7 Rider mit Klimmzugstange

Integrated Lat Pulldown System

Choose between 95 kg (203 cm height) or 125 kg (223 cm height) weight stacks or the plate-loaded version.

R7 Rider Squat Rack und Latzug mit Steckgewichten

Compact Design

Perform full power rack exercises plus lat pulldowns and rows in minimal space.

R7 Squat Rack Rider: Modular erweiterbar mit optionaler Deadlift Station und zusätzlichen Hantelscheibenhalterungen

Expandable Versatility

Modularly expandable with an optional deadlift station and additional weight plate holders.

R7 Rider Squat Rack Bauweise: lasergeschnitten, robotergeschweißt und doppelt pulverbeschichtet

Heavy-Duty Construction

Laser-cut, robot-welded, and double powder-coated for maximum stability and rust protection.

R7 Rider Squat Rack mit hohem Eigengewicht für sicheres Training und Platz für Hantelbank

Secure Training

70 mm steel tubing (2 mm thick) frame ensures rock-solid training.

R7 Rider Squat Rack: extrem belastbare Spotter Arms (350 kg) und J-Hooks (1100 kg)

Full Range of Accessories

Reinforced spotter arms (350 kg) and J-hooks (1100 kg) are coated for durability and built for safety.

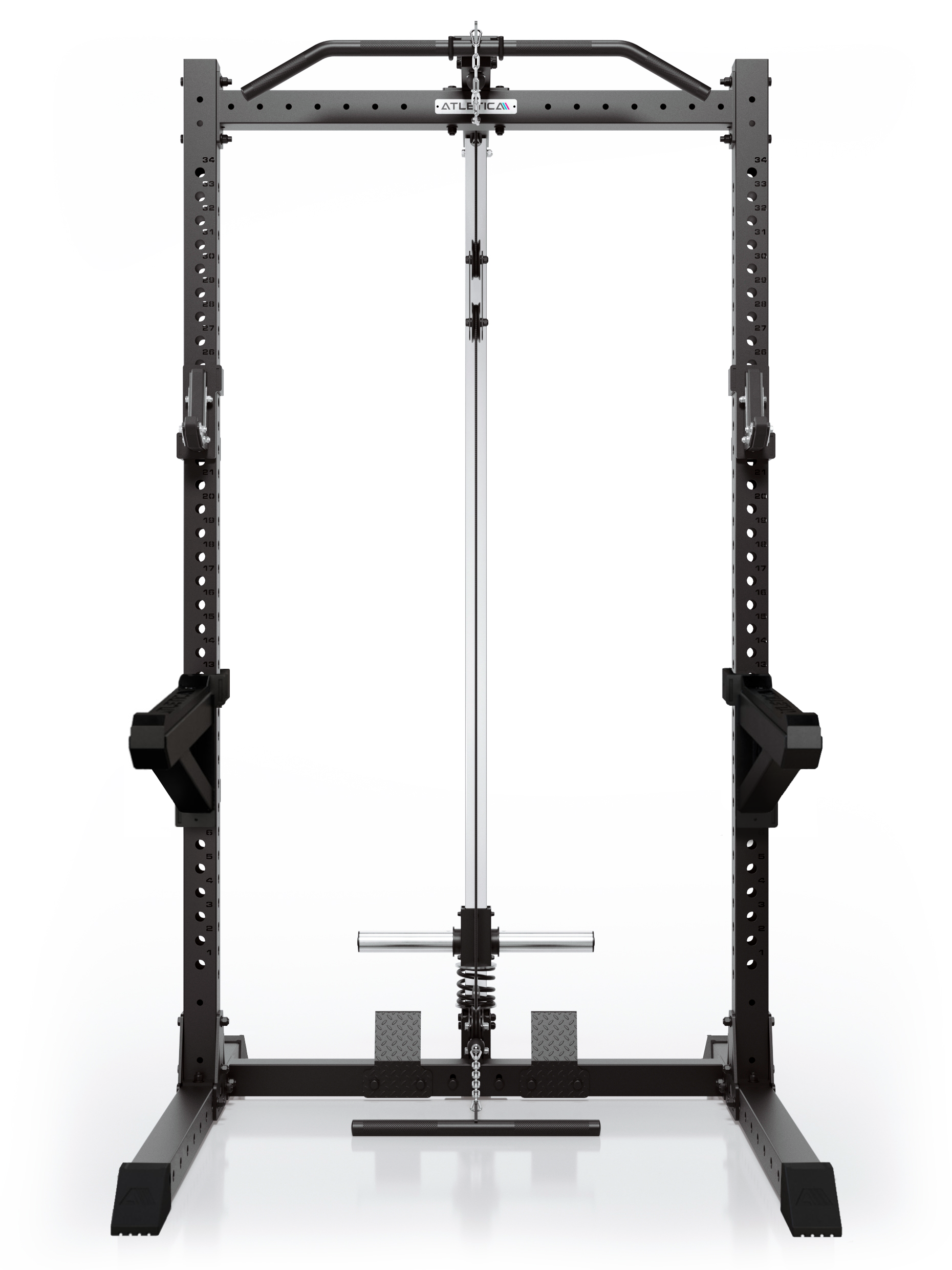

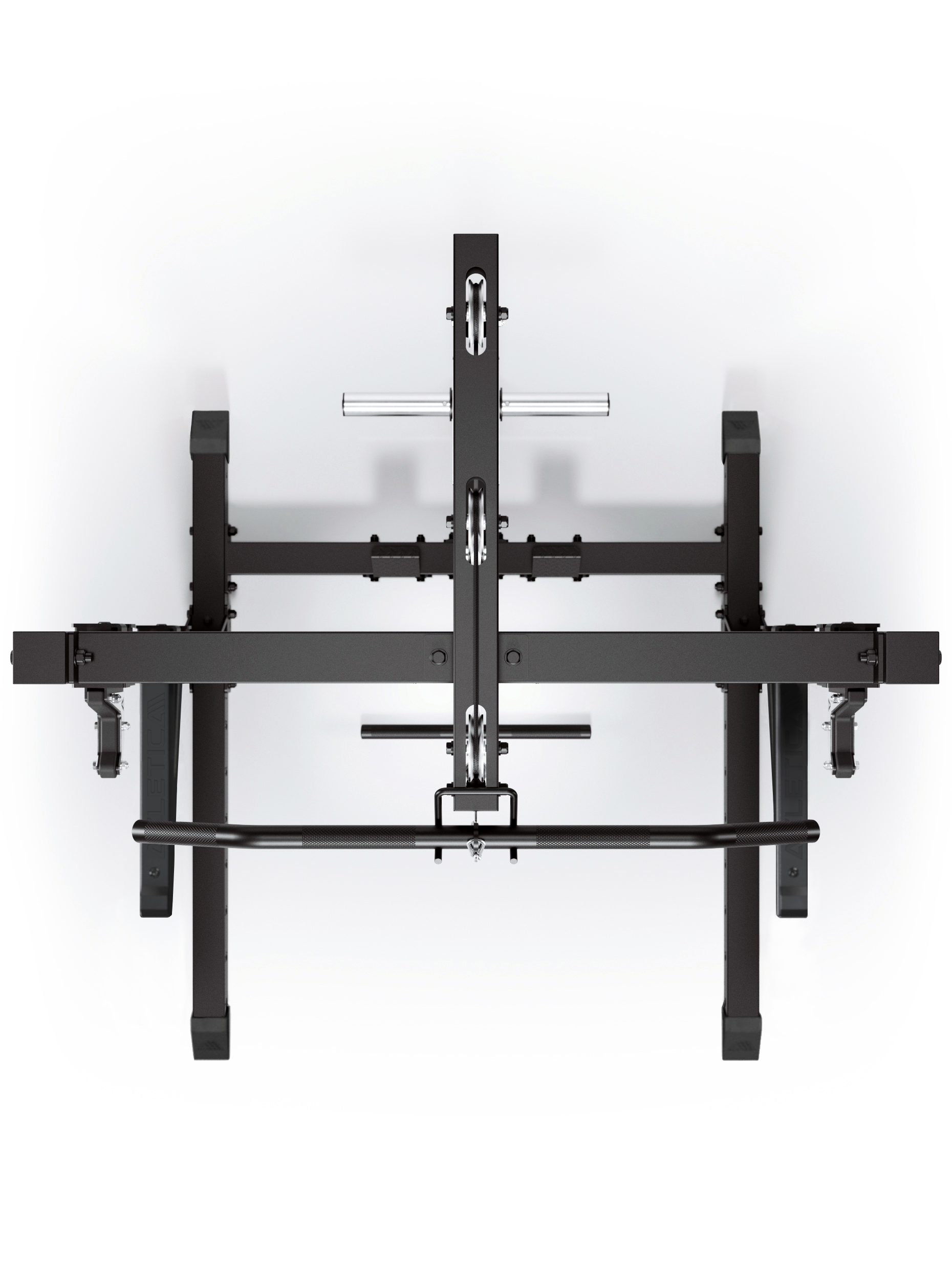

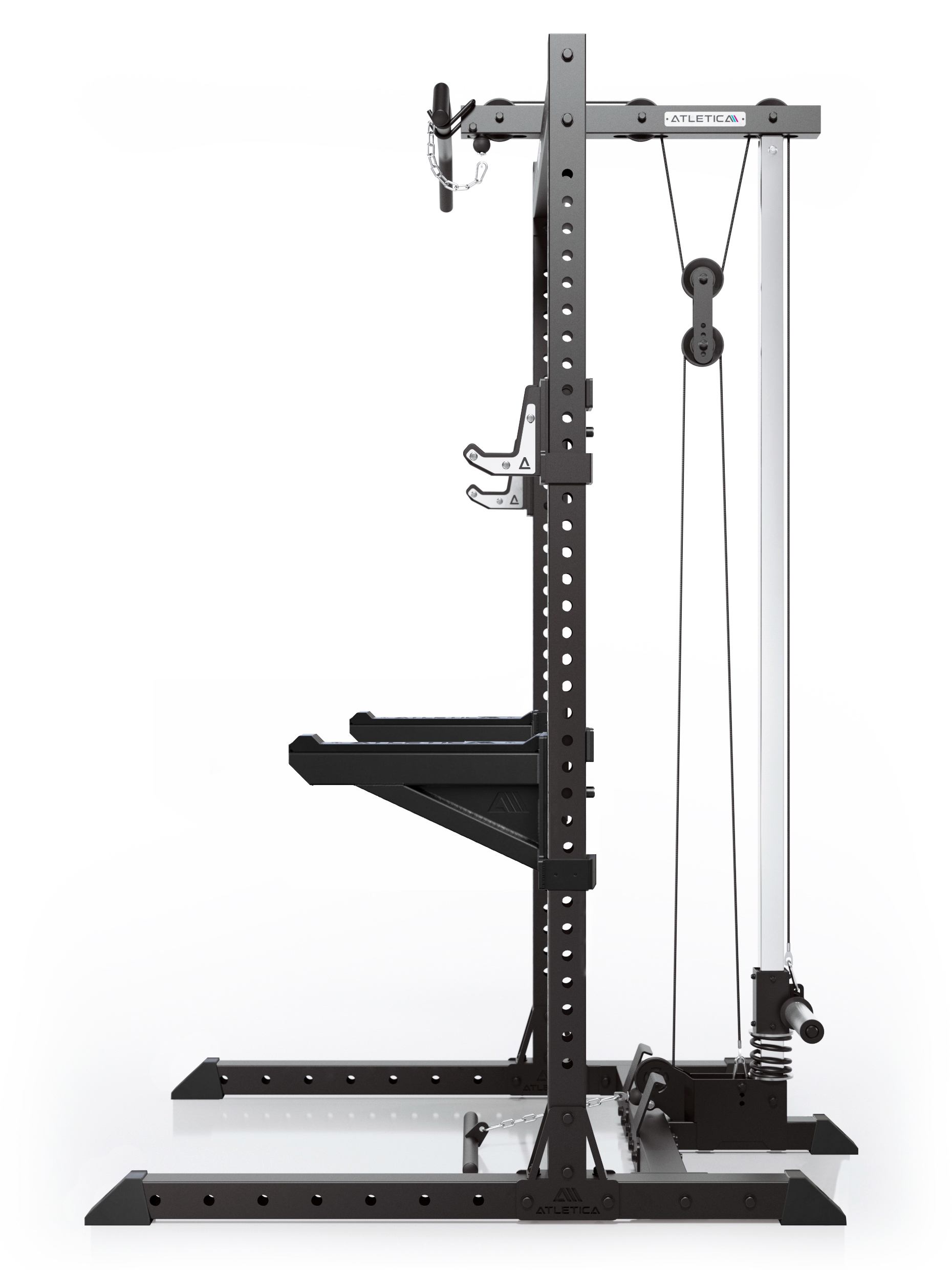

R7 Rider | with Plate Loaded Lat Pulldown/Rowing Unit | 203cm

  • The R7 Rider combines a squat rack with a cable station, J-Hooks and Safety Spotter Arms.
  • Almost replaces the need for a four-post Power Rack. It lets you perform Lat Pulldowns and rowing in minimal space.
  • Available in two height options, with optional selectorized weight stack.
  • Modular setup lets you expand with the optional deadlift station for quiet barbell drops during deadlifts and two weight plate holders behind the rack.
  • High-quality manufacturing processes, construction and components engineered in Germany.
  • The R7 Half Rack is laser-cut, robot-welded and double powder-coated using the latest production technology.
  • The powder coating is applied twice to intensify the black effect of the color and to protect the steel underneath against rust long-term.
  • Heavy-duty and rust-proof brand screws by Würth are used.

Rack basic equipment for wobble-free and safe training

  • 70 mm square tubes with a thickness of 2 mm result in a high dead weight and ensure wobble-free and safe training

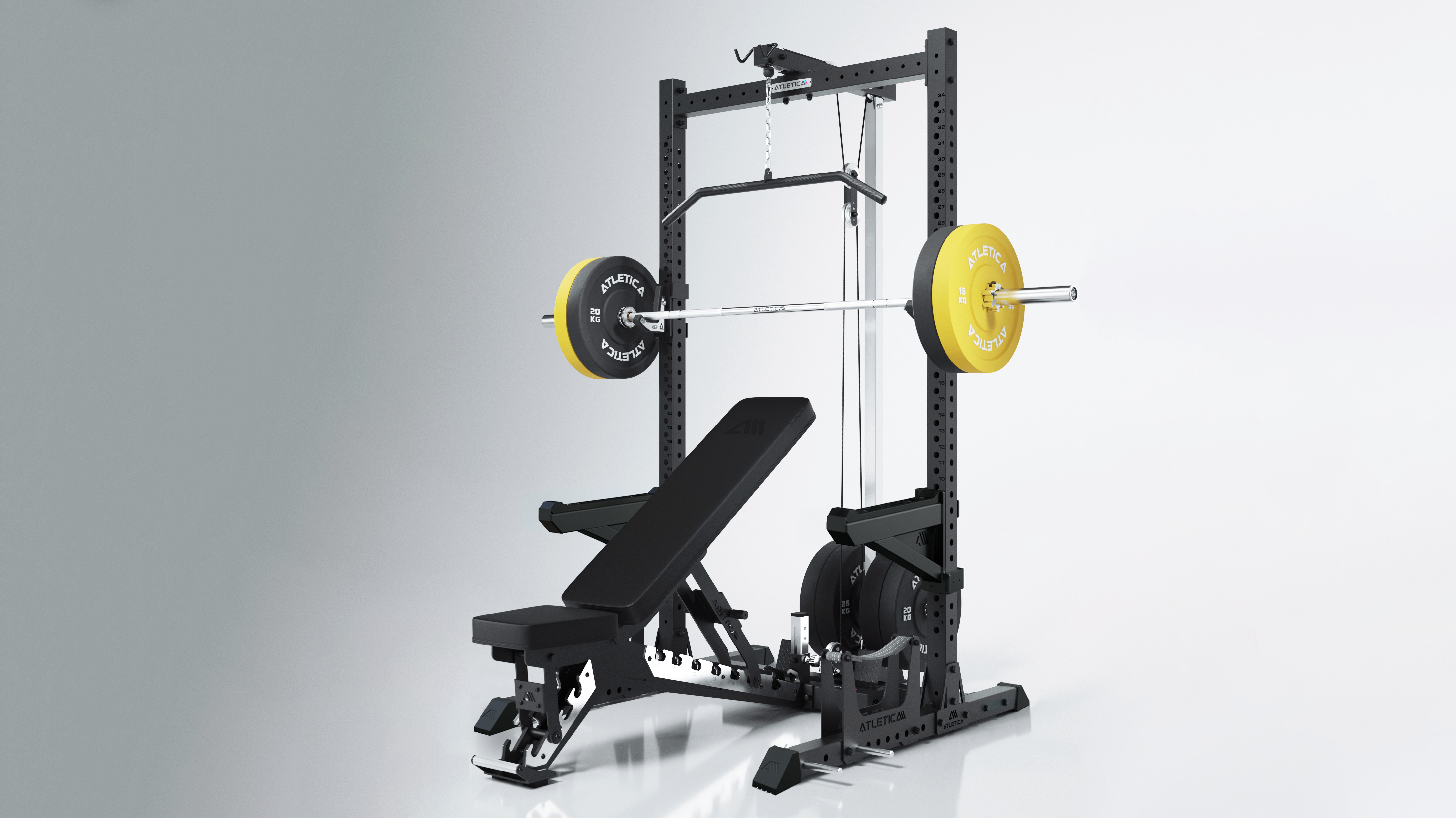

  • The R7 Squat Rack offers enough space to fit a Weight Bench inside the rack
  • This way no space is left unused and you can use your training area effectively
  • We offer the R7 Rider in two heights: 203 cm for lower ceilings or 223 cm standard height, as well as optionally with a 125 kg selectorized weight stack
  • The feet are rubberized and protect the floor from damage

Half Rack Accessories

  • By default, the R7 comes with extremely resilient Spotter Arms (up to 350 kg per pair) and Performance J-Hooks (up to 1100 kg per pair)
  • The latter have a hard-plastic protective layer on both the top and bottom, so the barbell is also protected if it accidentally hits the J-Hooks from below
  • The 17 cm deep cradle of the J-Hooks offers a secure resting surface that is hard to miss when setting down the barbell
  • The Spotter Arms reliably catch the weight if you can no longer manage it by muscle power alone
  • They are also suitable for bottom-up squats or rack pulls
  • The guide of the bar is linear-bearing mounted and enables a smooth barbell movement
  • Included handles: row/curl handle, 80cm ergo handle

Item ID

SKU 555-2227
EAN 4262446353201
R7 Rider Power Rack Plate Load Version: Dimensionen
Dimensions & Footprint
Height 203/223cm
Width 122cm
Depth 150cm
Net Weight 106.0/108.0kg
Base frame
Steel Type Alloy steel
Square Tube 70mm x 70mm
Steel Thickness 2mm
Coating Double powder coating
Corrosion Resistance Zinc alloy
Hole Pattern & Compatibility
Hole Grid 50mm
Hole (Pin) 21/20mm
Hole Spacing 50mm
Numbering and Scaling 32-fach Laser engraved
Weight Plate Compatibility 50mm
Compatibility with ATLETICA All ATLETICA R7 attachments - modular concept
Cable pull
Weight Loading Type Plate Loaded
Pulley Ratio 1:1
Cable Pulleys Plastic
Cable Quadruple-Coated Steel Cable
Cable Pull Rotation 180°
Attachments/Accessories
R7 Rider Plate-Loaded Version 1x
Row/Curl Bar 1x
Warranty & Certification
Basic Frame Warranty LifeTime
Attachment Warranty 5 Years
Approval EN 20957 S , Suitable for Studio and Commercial Use
Delivery & Assembly
Shipping Palletized Freight Delivery
Scheduled Freight Delivery Email Notification with Scheduling Options
Assembly Time 2hr, Two-Person Assembly
Tools Required Wrench Set 13, 17, 19
Service & Return Policy
Return Policy 100 Days after Purchase
Return Process Scheduled Freight Pickup
Included Services
Training Plan and Equipment Support 1 Hour Online Consultation Included
Quick Troubleshooting Service 7-Day Remote Help Service
