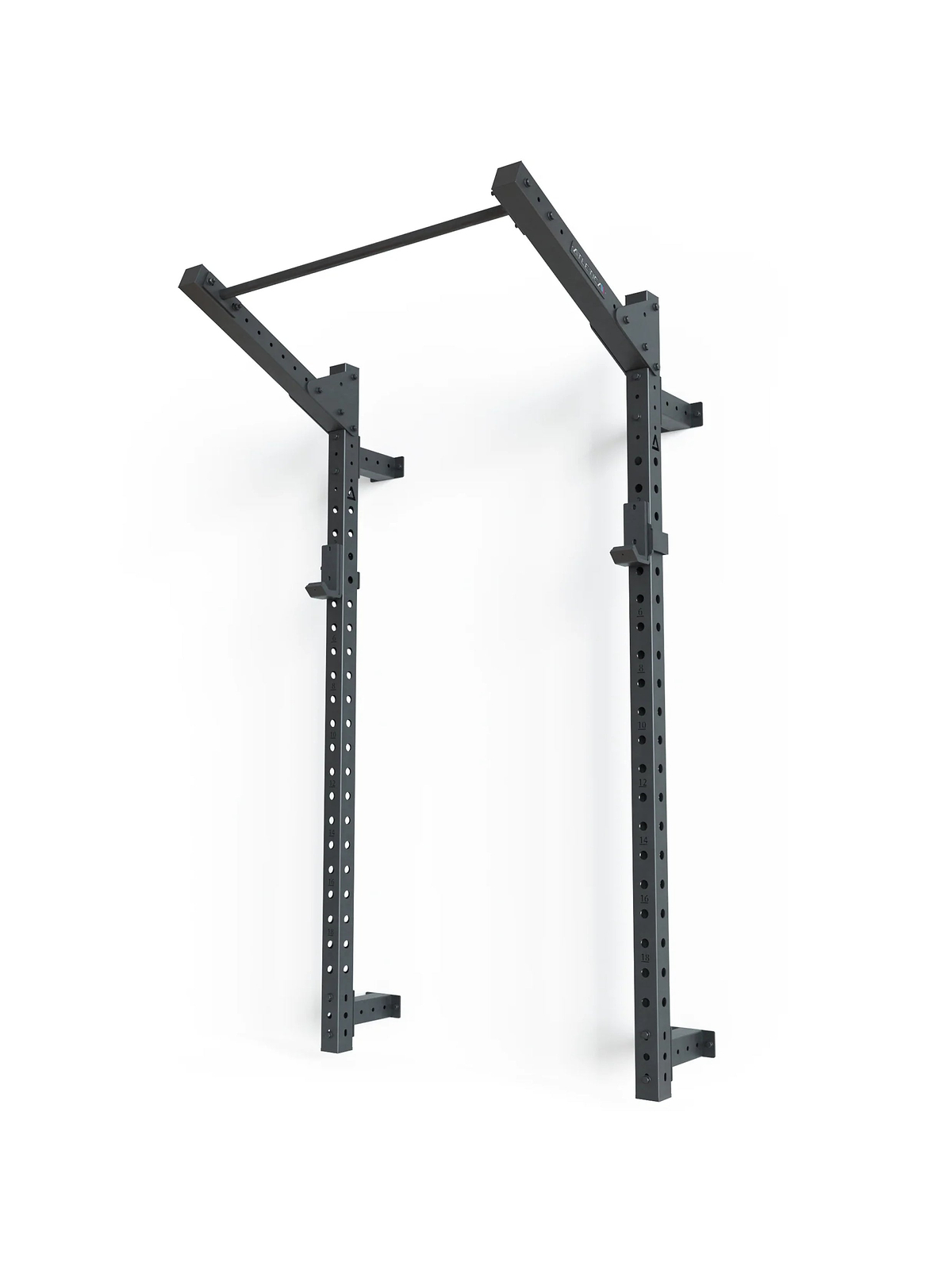

R8 Wall Rack

Name: R8 Wall Rack
Brand: Atletica
SKU: 555-1631
Price: 459.0 EUR
Availability: InStock
Rating: 4.8 (13 reviews)

459,00€

Wall-Mounted | Just 27.5 cm Deep | Built for Compact Home Gyms and Garages | Height Adjustable from 228 to 241 cm | Heavy-Duty 75x75x3 mm Steel Tubing

Free Training App

Loyalty Points

100-Day Return Policy

Product Features

Space-Saving Design

At only 27.5 cm deep, it's small enough for tight spaces and big enough for all your main movements.

Robust Stability

When securely attached to a solid wall, it's just as stable as a 4- or 6-post rack system.

Versatile Use

Do free weight exercises like squats, just like you would with a four-post power rack.

Flexible Accessories

Comes with J-Hooks (loadable up to 450 kg) and a height-adjustable pull-up bar with excellent grip.

Compatible Dimensions

The 123 cm width fits all standard barbells with an inside measurement of 131 cm.

R8 Power Racks von Atletica: TÜV und GS Zertifizierung

Verified Quality

TÜV and GS certified according to EN 20957: The Atletica R8 Power Racks meet the highest European safety standards and are suitable for use in commercial fitness studios.

The R8 Wall Rack is Only 27.5 cm Deep

The distance to the wall is large enough to load even Bumper Plates onto the barbell on the rack and to perform, for example, bench press on a Weight Bench
At 123 cm, the width is identical to that of our R8 Power Racks and therefore ideal for using all standard barbells with a 131 cm inside width
This means you can perform all free weight exercises, such as squats, just like on a Power Rack with four posts
Screwed into a suitable wall, it is in no way inferior to 4- or 6-post systems in terms of stability

Usable Outdoors and in Apartments or Garages

The zinc-finished steel is suitable for outdoor use
However, the R8 Wall Rack can also be used in apartments, provided the walls are sufficiently solid
Unlike the Power Racks of our R8 series, the feet are not fitted with rubber protectors
If the Wall Rack is not mounted floating on the wall, we recommend additionally using one of our floor protection mats on a sensitive surface
In the case of a garage, it is often necessary to quickly free up space in order to fit a car inside
Our B1 and Predator Weight Benches are especially suitable for this, since thanks to their standing function they can be raised vertically and moved out of the way without much effort or time

Equipment and Expandability

In addition to the J-Hooks, which can bear up to 450 kg, a Pull-Up Bar is also included in the delivery
It has medium-sharp knurling and offers you an excellent grip during your back training
It can also be mounted on the rack at different heights and even facing downward, so you can reduce the total height from 241 to 228 cm
If needed, further attachments can be purchased
The Wall Rack is compatible with all attachments of our R8 series
This way, you can further increase functionality and exercise variety with, among other things, Spotter Arms or a core rotation trainer

Article ID

SKU	555-1631
EAN	4260754390253
Color	Matt Black

Technical Specs

Dimensions & Footprint

Height	228cm - 241cm
Width	121cm
Depth	27.5cm - Rack, 96cm with Pull-Up Bar
Net Weight	77kg

Load Capacity

Upright Posts and Crossbars	Up to 800 kg
Load Distribution	80% Floor and 20% Wall. Load Deflecting Away from the Wall Towards the Floor.
J-Hooks Type 1	Up to 550 kg per J-Hook, Weight Drop Tested
Pull-Up Bar	Up to 250 kg, Tensile Strength Tested

Base Frame

Steel Type	Alloy Steel
Square Tube	75mm x 75mm
Steel Thickness	3mm
Coating	Double Powder Coating
Corrosion Resistance	Zinc Alloy

Hole Pattern & Compatibility

Hole Grid	50mm
Hole (Pin)	25mm
Hole Spacing	50mm
Numbering and Scaling	32 Laser Engraved Settings + 9-Ultra-Fine Adjustment Settings on Crossbars
Weight Plate Compatibility	50mm
Compatibility with ATLETICA	All ATLETICA R8 attachments - modular concept

Policies & Delivery Contents

Attachments/Accessories

R8 Wall Rack Uprights	1x Pair
R8 Wall Rack Crossbars for Wall Mounting	2x Pair
R8 Wall Rack Pull-Up Bar with Bracket	1x
R8 J-Hooks Type 1	1x Pair

Warranty & Certification

Basic Frame Warranty	LifeTime
Attachment Warranty	5 Years
Approval	EN 20957 S , Suitable for Studio and Commercial Use
TÜV Certification	TÜV Rheinland & GS certified ×

Delivery & Assembly

Shipping	Palletized Freight Delivery
Scheduled Freight Delivery	Email Notification with Scheduling Options
Assembly Time	1hr, Two-Person Assembly
Tools Required	Wrench Set 13, 17, 19

Service & Return Policy

Return Policy	100 Days after Purchase
Return Process	Scheduled Freight Pickup

Included Services

Training Plan and Equipment Support	1 Hour Online Consultation Included
Quick Troubleshooting Service	7-Day Remote Help Service

Customer Reviews

Lars W.

I've had the rack for a few months and I'm really impressed with the quality. The thing is sturdy and it doesn't wobble at all. It was also relatively easy to assemble if there are two of you. I would buy the device again at any time because it doesn't take up much space. The pull-up bar is absolutely top-notch. Super easy to grip and just the right width. I also bought the emergency rests, which make the rack perfect for training alone. Heavy bench presses and squats can also be done safely alone. The reason for deducting one star, however, is the squats. Unfortunately, the device is so space-saving that I hit my head when picking up and putting down the bar when doing squats. The distance to the wall could have been 3-5cm larger at the expense of space. It works great as it is, but you have to be careful. The J-hooks also have some play, which makes them quite loud. The criticisms individually wouldn't be a reason for 4 stars, but together they do. I'll be ordering even better J-hooks soon. I'm still getting used to the distance to the wall. So it's a great rack! If you have little space and want a super robust rack, you should go for it! :)

Benjamin J.

Very stable. The only part where you can do pull-ups without removing the bar...

Andreas E.

Easy to assemble, super stable and looks very good!!!

Jana H.

Seems to be of pretty high quality. Shipping to Austria took about 10 days. The installation in the brickwork using the supplied dowels was easy to do. My ceiling is 240 cm high, so I mounted the pull-up bar lower down. The bar is now about 220 cm high, which fits well. In terms of space consumption, the rack is really top-notch.

Andreas L.

The quality couldn't be better. I'm super happy with the R8 Wall Rack from ATLETICA. The workmanship and design are simply top notch. The feel of the knurling on the barbell and pull-up bar is just what you'd want it to be. Furthermore, the ordering process including delivery was flawless. The rack arrived perfectly packaged with the accessories after 4 working days. The only recommendation I would like to share as feedback is that the assembly instructions could be a bit more detailed, especially when it comes to the individual steps of assembly. Otherwise, I can only recommend ATLETICA products. Thank you!

Adnan J.

The rack arrived about 10 days after I ordered it. The uprights are solid and very well made. The holes are precisely and cleanly lasered and I really enjoy the rack. The pull-up bar has a very nice grip without being too sharp. I only deduct one point because the paint comes off the J-hooks relatively quickly, but that will happen over time anyway since it is an item of everyday use. All in all a great, space-saving and very functional rack!

Markus H.

It is in no way inferior to the "expensive" ones. Quite the opposite. Great product. Would buy again. Shipped immediately

Space-Saving Design

At only 27.5 cm deep, it's small enough for tight spaces and big enough for all your main movements.

Robust Stability

When securely attached to a solid wall, it's just as stable as a 4- or 6-post rack system.

Versatile Use

Do free weight exercises like squats, just like you would with a four-post power rack.

Flexible Accessories

Comes with J-Hooks (loadable up to 450 kg) and a height-adjustable pull-up bar with excellent grip.

Compatible Dimensions

The 123 cm width fits all standard barbells with an inside measurement of 131 cm.

Verified Quality

TÜV and GS certified according to EN 20957: The Atletica R8 Power Racks meet the highest European safety standards and are suitable for use in commercial fitness studios.

The R8 Wall Rack is Only 27.5 cm Deep

The distance to the wall is large enough to load even Bumper Plates onto the barbell on the rack and to perform, for example, bench press on a Weight Bench
At 123 cm, the width is identical to that of our R8 Power Racks and therefore ideal for using all standard barbells with a 131 cm inside width
This means you can perform all free weight exercises, such as squats, just like on a Power Rack with four posts
Screwed into a suitable wall, it is in no way inferior to 4- or 6-post systems in terms of stability

Usable Outdoors and in Apartments or Garages

The zinc-finished steel is suitable for outdoor use
However, the R8 Wall Rack can also be used in apartments, provided the walls are sufficiently solid
Unlike the Power Racks of our R8 series, the feet are not fitted with rubber protectors
If the Wall Rack is not mounted floating on the wall, we recommend additionally using one of our floor protection mats on a sensitive surface
In the case of a garage, it is often necessary to quickly free up space in order to fit a car inside
Our B1 and Predator Weight Benches are especially suitable for this, since thanks to their standing function they can be raised vertically and moved out of the way without much effort or time

Equipment and Expandability

In addition to the J-Hooks, which can bear up to 450 kg, a Pull-Up Bar is also included in the delivery
It has medium-sharp knurling and offers you an excellent grip during your back training
It can also be mounted on the rack at different heights and even facing downward, so you can reduce the total height from 241 to 228 cm
If needed, further attachments can be purchased
The Wall Rack is compatible with all attachments of our R8 series
This way, you can further increase functionality and exercise variety with, among other things, Spotter Arms or a core rotation trainer

Article ID

SKU	555-1631
EAN	4260754390253
Color	Matt Black

Dimensions & Footprint

Height	228cm - 241cm
Width	121cm
Depth	27.5cm - Rack, 96cm with Pull-Up Bar
Net Weight	77kg

Load Capacity

Upright Posts and Crossbars	Up to 800 kg
Load Distribution	80% Floor and 20% Wall. Load Deflecting Away from the Wall Towards the Floor.
J-Hooks Type 1	Up to 550 kg per J-Hook, Weight Drop Tested
Pull-Up Bar	Up to 250 kg, Tensile Strength Tested

Base Frame

Steel Type	Alloy Steel
Square Tube	75mm x 75mm
Steel Thickness	3mm
Coating	Double Powder Coating
Corrosion Resistance	Zinc Alloy

Hole Pattern & Compatibility

Hole Grid	50mm
Hole (Pin)	25mm
Hole Spacing	50mm
Numbering and Scaling	32 Laser Engraved Settings + 9-Ultra-Fine Adjustment Settings on Crossbars
Weight Plate Compatibility	50mm
Compatibility with ATLETICA	All ATLETICA R8 attachments - modular concept

Attachments/Accessories

R8 Wall Rack Uprights	1x Pair
R8 Wall Rack Crossbars for Wall Mounting	2x Pair
R8 Wall Rack Pull-Up Bar with Bracket	1x
R8 J-Hooks Type 1	1x Pair

Warranty & Certification

Basic Frame Warranty	LifeTime
Attachment Warranty	5 Years
Approval	EN 20957 S , Suitable for Studio and Commercial Use
TÜV Certification	TÜV Rheinland & GS certified ×

Delivery & Assembly

Shipping	Palletized Freight Delivery
Scheduled Freight Delivery	Email Notification with Scheduling Options
Assembly Time	1hr, Two-Person Assembly
Tools Required	Wrench Set 13, 17, 19

Service & Return Policy

Return Policy	100 Days after Purchase
Return Process	Scheduled Freight Pickup

Included Services

Training Plan and Equipment Support	1 Hour Online Consultation Included
Quick Troubleshooting Service	7-Day Remote Help Service

Lars W.

Benjamin J.

Very stable. The only part where you can do pull-ups without removing the bar...

Andreas E.

Easy to assemble, super stable and looks very good!!!

Jana H.

Andreas L.

Adnan J.

Markus H.

It is in no way inferior to the "expensive" ones. Quite the opposite. Great product. Would buy again. Shipped immediately
