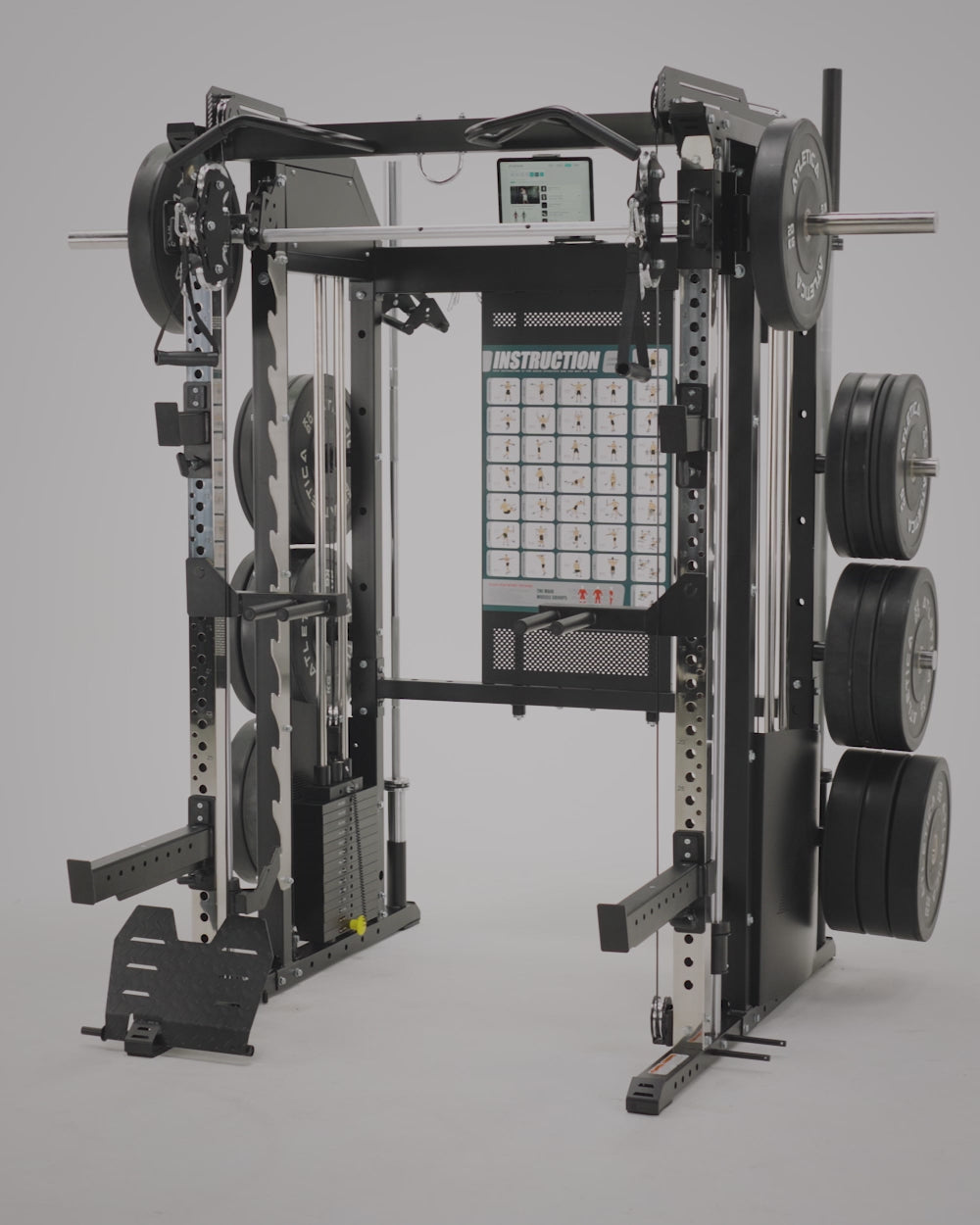

Fallout is a studio-quality all-in-one station that combines the functionality of a variable ratio crossover cable pulley, the versatility of a power rack, and the safety of a Smith machine.
Innovative cable pull with variable gear ratio
- Special feature of this power station: A patented triple roller system allows the athlete to switch between a 1:1 and a 1:2 ratio depending on the exercise requirements.
- With a 1:2 ratio, half of the selected weight reaches the handle, which is great for training smaller muscle groups, such as lateral raises or tricep presses.
- The 1:1 ratio is suitable for exercises that target large muscle groups, such as lat pulldowns and low rows.
- Guide shafts made of hardened steel and ball-bearing aluminum rollers ensure smooth cable routing, as you would expect from commercial studio equipment.
Lat Pulldown Set - One of many optional attachments
- With the Lat Pulldown Set, Fallout becomes a fully-fledged lat pulldown with 90kg training weight and full range of motion.
- The set includes an ergonomic seat with height-adjustable knee pad and a lat pull-down height extension.
- The seat and height extension are mounted on one side of the cable pull and ensure a full range of motion when performing pulling exercises from above. This means that even tall athletes can reach full extension for maximum effectiveness.
- High load capacity thanks to material thicknesses between 4.5 and 5.5mm and individually adjustable pull height. With the optional weight loading pin, the 90kg weight block can be expanded to include additional weight plates.
Multipress – Linear bearings for excellent running characteristics
- The barbell of the multi-press is made of stainless steel and is compatible with ø30 and ø50mm weight plates thanks to removable adapter sleeves.
- Thanks to laser-cut hooks, the Smith Bar can be positioned precisely and safely on the stainless steel shelf after the last repetition.
- There are 11 rest points that can be accessed by simply twisting and hooking the bar. The barbell is knurled to ensure a secure grip.
- The Smith machine features high-quality linear bearings for a friction-free and quiet training experience, and the guide rods are hard chrome-plated.
- Includes band pegs for the use of resistance bands on the multi-press, for variable load curves.
Power rack element for free weight exercises
- Use the Power Rack Element to perform classic barbell exercises such as bench presses, shoulder presses and squats with a free barbell.
- Thanks to J-Hooks and Safety Spotter, you always have safe and ideally positioned storage options and can safely push yourself to your limits.
- The front uprights made of stainless steel are resistant to scratches and impacts, permanently rust-free and contribute to the elegant appearance.
- The profile dimensions of the posts are 70x50mm with a material thickness of 2.5mm.
- The total load capacity of the rack element is 500kg, so training with heavy weights is possible.
Extensive accessories included
- 2x dual pull bar (1x straight, 1x SZ-shaped), short pull and curl bar, J-hooks, safety spotter, dip bars, parallel rowing handle, 1 pair of single handles, triceps rope, foot loop, extension chain, low row foot plate.
Other optional accessories
- Lat Seat + Lat Extension
- Hip Thruster + Knee Holder Foam Roll
- Rack Knee Holder
- Jammer Arms
- Monolifts
Article ID
SKU | 555-2187 |
EAN | 4262446352839 |
Maximale Belastung
620
Kg
250
Kg
670
Kg
Cable pull
Weight block | 2x90kg |
Gear ratio | 1:1 & 1:2 |
Roll | aluminum |
Roll storage | Ball bearings |
Cable | Quadruple coated steel cable |
Cable pull rotation | 180° |
Vertical adjustment | 34 steps |
Dimensions & footprint
Height | 213cm |
Width of the machine | 203.5cm |
depth | 173.7cm (148.6cm without safety spotter) |
Net weight | 385.8kg |
Resilience
Smith Machine | 620kg (static load test) |
Cable pull | 250kg |
J-Hooks and Safety Spotters | 670kg (static load test) |
Dip handles | 340kg (static load test) |
Pull-up handles | 340kg (static load test) |
Base frame
Steel type | Alloy steel 11 gauge (front uprights made of 202 stainless steel) |
Square tube | 70x50mm |
Metal thickness | 2.5mm |
Coating | Double powder coating |
Corrosion resistance | Zinc alloy |
Hole Pattern & Compatibility
Hole (pin) | 21mm hole diameter in the upright |
Hole centre distance | 50mm |
Numbering and scaling | Laser cut |
Weight Plate Compatibility | Diameter of the weight plate holders: Ø 30 / Ø 50 mm (removable adapter) |
Fallout Power Station PRO | 1x |
Accesories | 2x dual pull bar (1x straight, 1x SZ-shaped), short pull and curl bar, J-hooks, safety spotter, dip bars, parallel rowing handle, 1 pair of single handles, triceps rope, foot loop, extension chain, low row foot plate |
Warranty & Certification
Guarantee base frame | LifeTime |
Warranty attachments | 5 years |
Permit | EN 20957 S , studio and commercial use possible |
Delivery & Assembly
Delivery costs | Free in Germany |
Delivery | Freight delivery on pallet |
Delivery type | Free curbside ticket |
Appointment | Email announcement with date selection |
Assembly time | 2h, two-man |
Required tools | Wrench set 13, 17, 19 |
Service & Return Policy
refund policy | 100 days after purchase |
Return costs | Free of charge |
Organisation of the return | Collection by forwarding agent with desired date |
Service included
Advice on training plan and equipment use | 1h online consultation included |
Quick Troubleshoot Service | 7-day remote support service |
On-site service | Nationwide |
