R8 JadeWall | Outdoor Wall Rack | Hot-Dip Galvanized
Built for Outdoor Training | Hot-Dip Galvanized and Powder-Coated | Lifetime Warranty | Stable on Any Surface | Modular Expansion | Includes J-Hooks and Pull-Up Bar
R8 JadeWall | Outdoor Wall Rack | Hot-Dip Galvanized
Sale Price599,00€
Product Features
Train Outdoors Year-Round
- Built for outdoor training with a focus on durability and long-term use.
- Hot-dip galvanized, surface-treated, and double powder-coated steel with a lifetime warranty.
- Multiple anchoring options support stable training on any surface.
- Modular system based on the proven R8 platform allows flexible setup and expansion.
- Compatible with a wide range of outdoor accessories like the Outdoor Bench, made fully from stainless steel with a waterproof pad, and the stainless steel INOX barbell.
- 255 cm height supports full range of motion for pull-ups and muscle-ups, even for taller athletes.
Hot-Dip Galvanized for Full Corrosion Protection
- Hot-dip galvanization protects the steel inside and out, unlike standard surface coatings.
- Immersion in molten zinc creates a multi-layer protective coating bonded to the steel.
- This process forms a durable zinc-iron layer that resists corrosion and weather exposure.

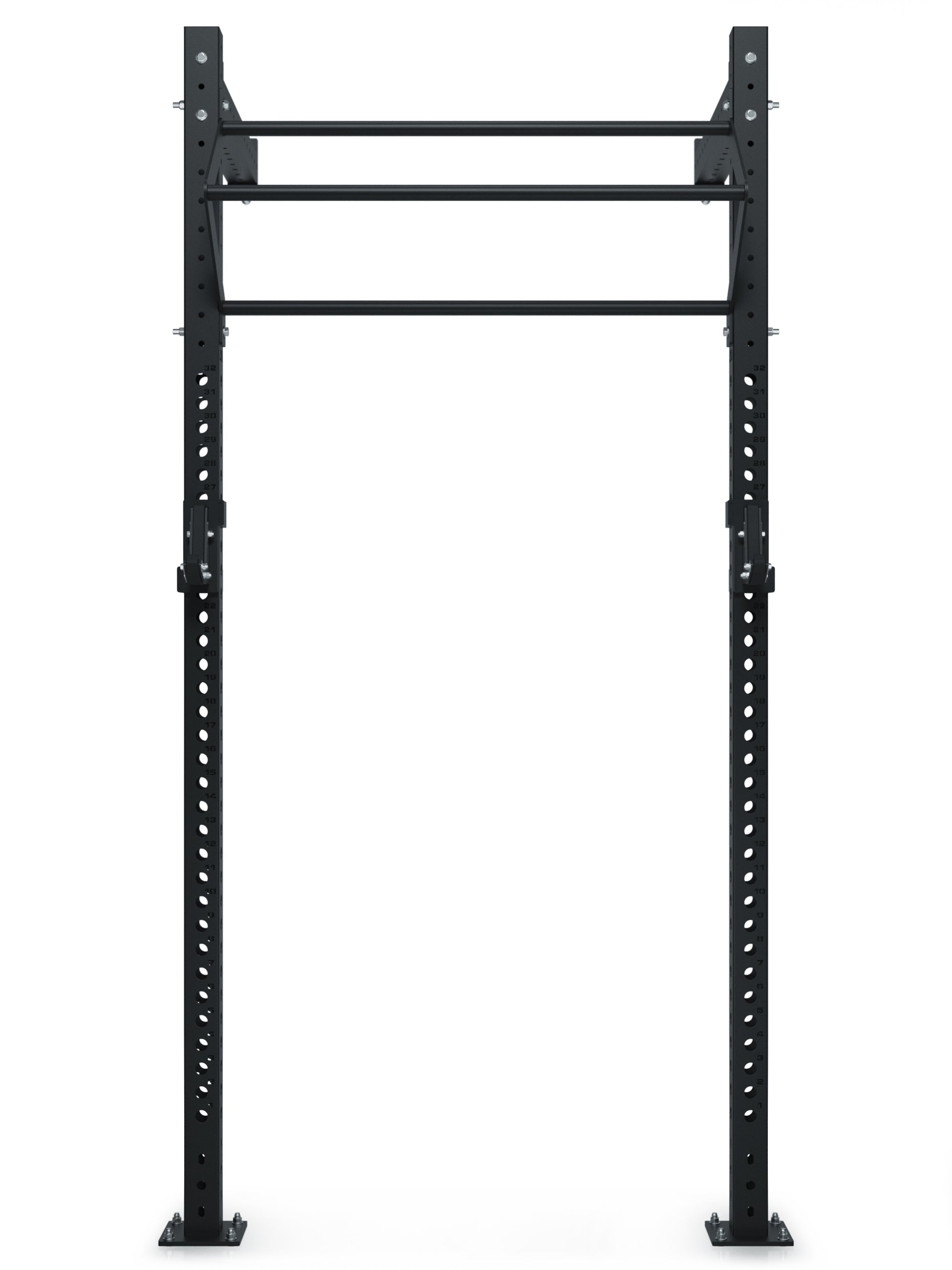

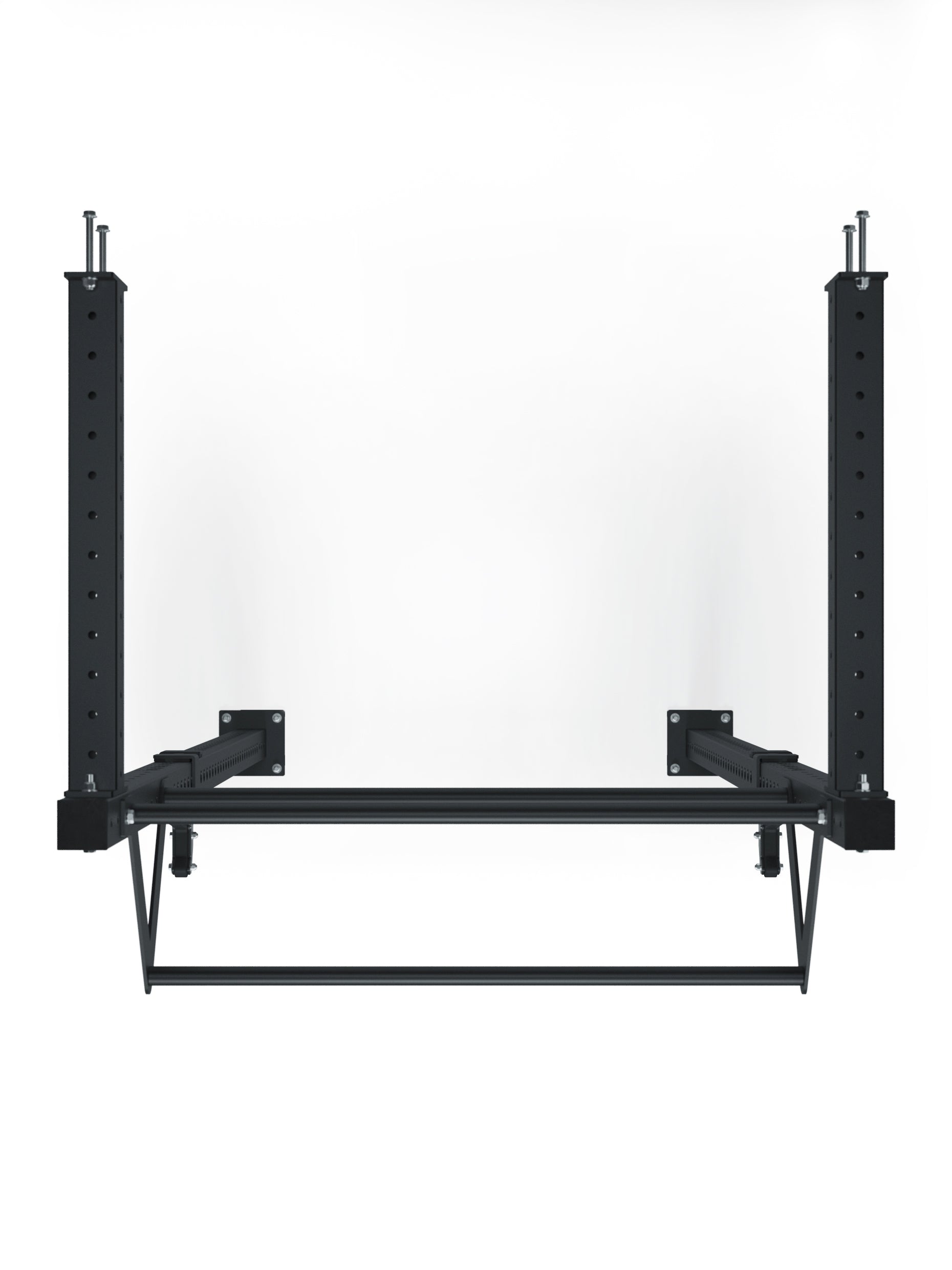

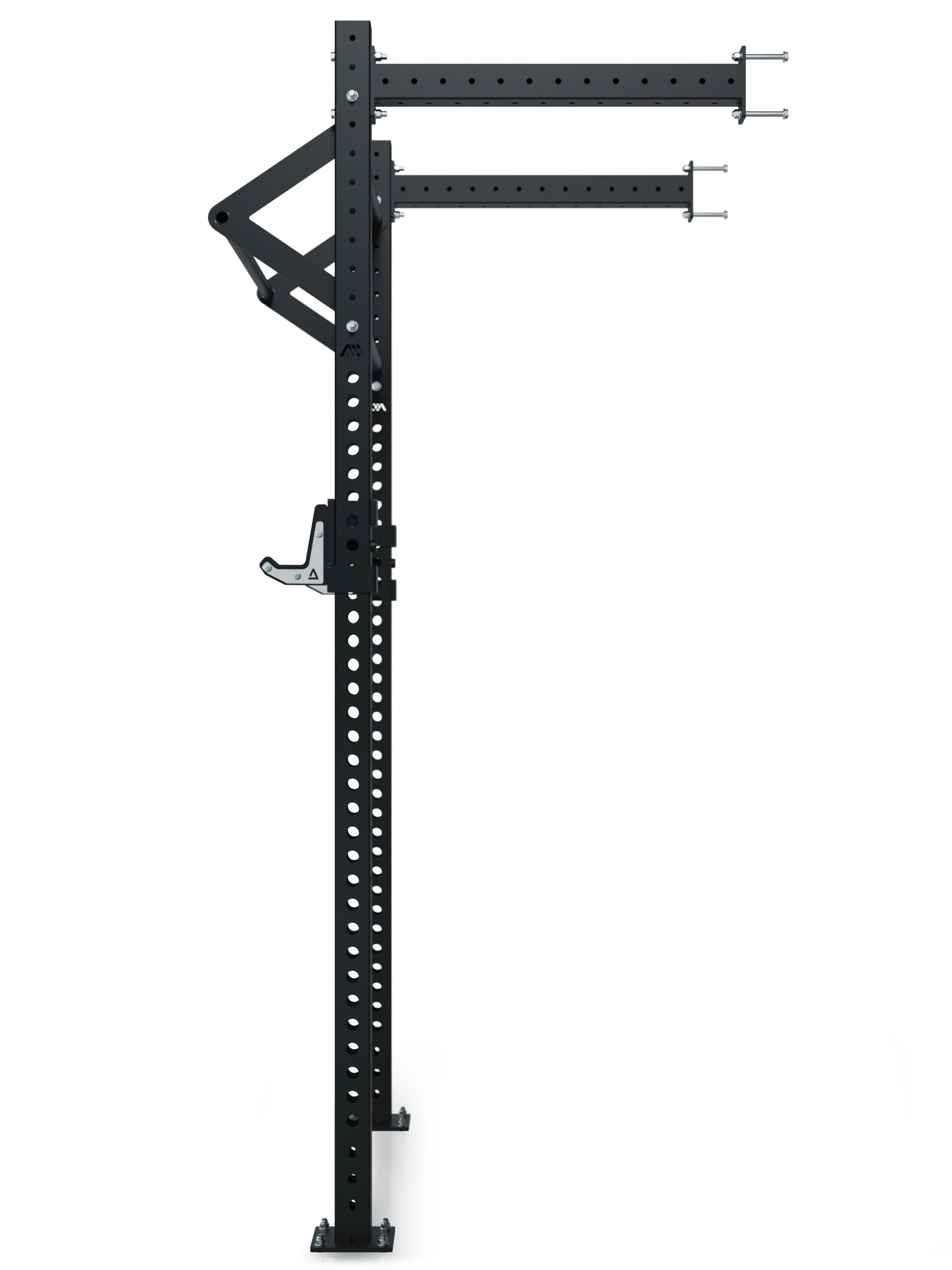

R8 JadeWall Outdoor Wall Rack
- Wall-mounted design with 75x75x3 mm steel profile and 78 cm crossbars for secure installation.

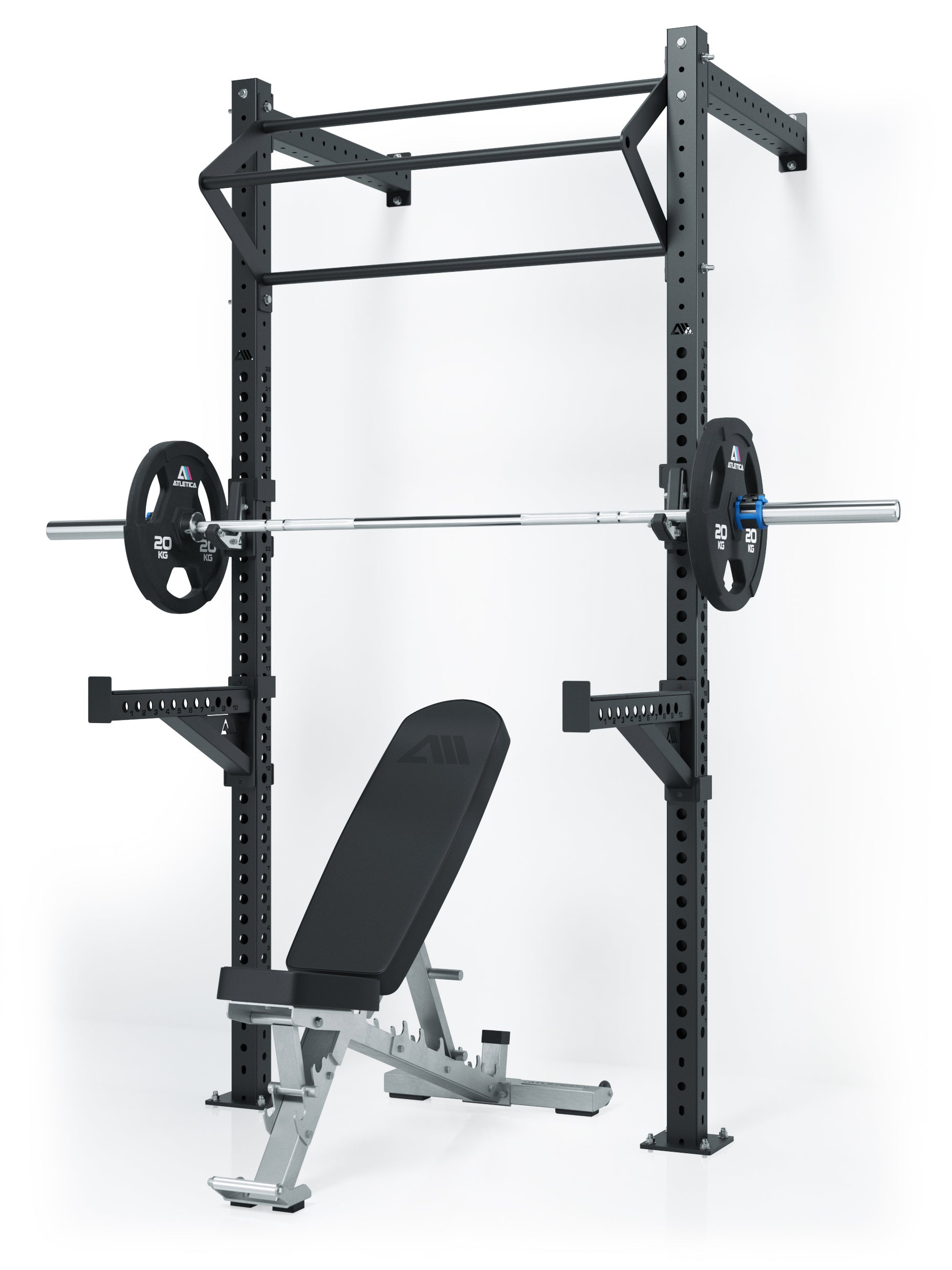

- Space-efficient setup supports all core barbell lifts, including squats, bench press, and shoulder press.
- Includes J-Hooks and triangle pull-up bar.
- Compatible with R8 modular expansions and optional attachments, including safety spotter arms, dip bar, and weight pins.
- Recommended for use with Grip Plates for outdoor training.
Stable on Any Surface
- Designed for secure installation across different ground types.
- Mounts to concrete using M12 bolt anchors.
- Can be stabilized on grass, soil, or gravel using skid plates.
- Jade and JadeWall require point foundations with M12 anchors or ground anchors.
- Outdoor setup details coming soon.
- Optional 100x100x4 cm floor mats allow quick setup of a stable, level training area.
article ID
| SKU | 555-2335 |
| EAN | 4262446354222 |
Technical Specs

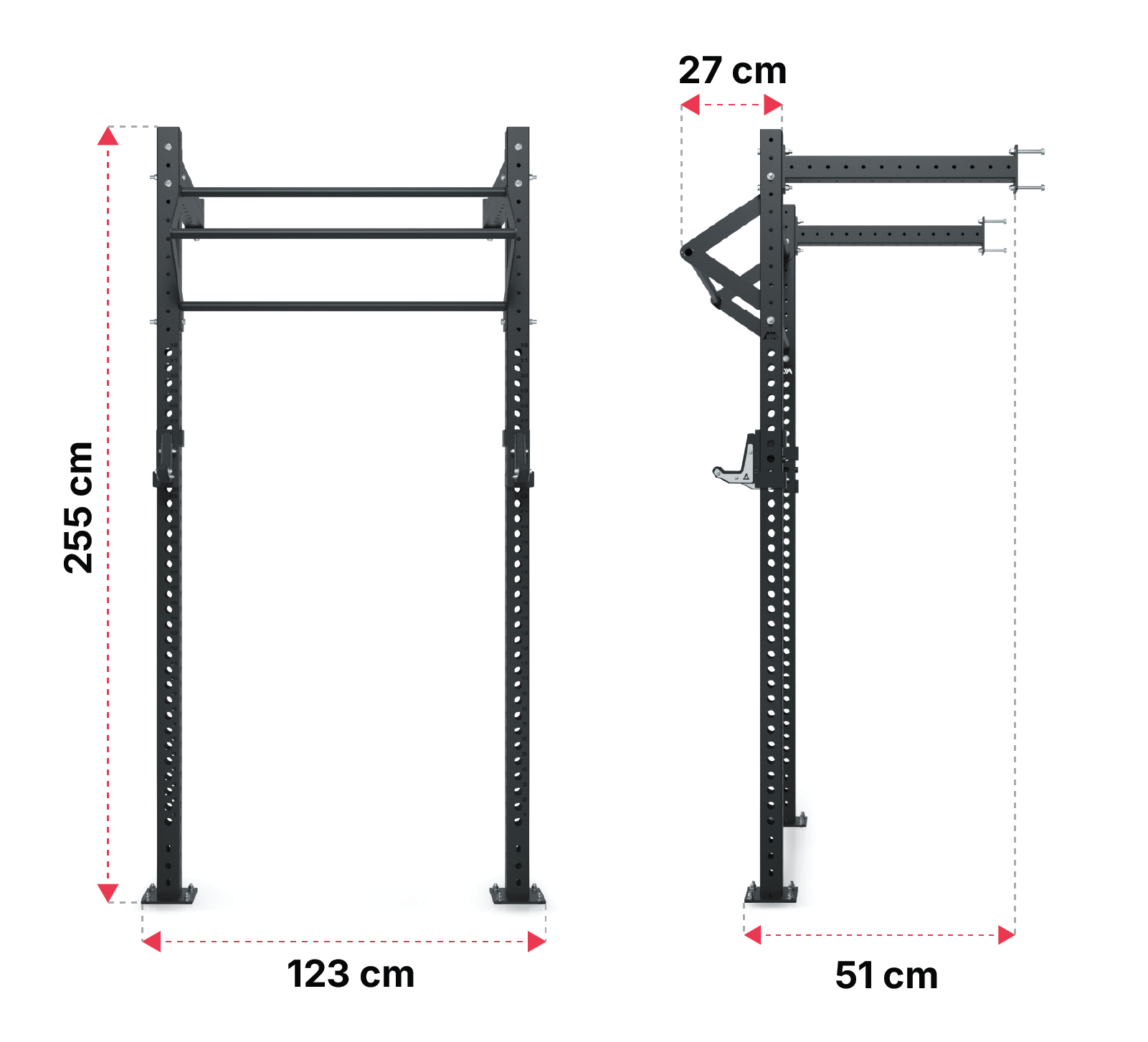

Dimensions & Footprint
| Height | 255cm |
| Width | 123cm |
| Depth | 78cm |
| Net Weight | 95kg |
| Length | NA |
Load Capacity
| Upright Posts and Crossbars | Tested for Tensile Strength and PSI Load, Up to 1,500kg |
| Pull-Up Bar | Tested for Tensile Strength, Up to 400kg |
| J-Hooks | Drop Tested, Up to 450kg per J-Hook |
Base Frame
| Steel Type | Alloy Steel |
| Square Tube | 75mm x 75mm |
| Steel Thickness | 3mm |
| Coating | Hot-Dip Galvanized, Surface Treated and Double Powder Coated |
| Corrosion Resistance | Hot Dip Galvanized |
Hole Pattern & Compatibility
| Hole Grid | 50mm |
| Hole (Pin) | 25mm |
| Hole Spacing | 50mm |
| Numbering and Scaling | Laser Engraved Settings + Ultra-Fine Adjustment Settings on Crossbars |
| Weight Plate Compatibility | 30mm and 50mm |
Policies & Delivery Contents
Attachments/Accessories
| R8 JadeWall Outdoor Wall Rack, Hot-Dip Galvanized & Powder-Coated | 1x |
Warranty & Certification
| Basic Frame Warranty | Lifetime |
| Attachment Warranty | 5 Years |
| Approval | EN 20957 S , Suitable for Studio and Commercial Use |
Delivery & Installation
| Shipping | Palletized Freight Delivery |
| Scheduled Freight Delivery | Email Notification with Scheduling Options |
| Assembly Time | 1Hr, Two Person Assembly |
Service & Return Policy
| Return Policy | 100 Days after Purchase |
| Return Process | Scheduled Freight Pickup |
Included Services
| Training Plan and Equipment Support | 1 Hour Online Consultation Included |
| Quick Troubleshooting Service | 7-Day Remote Help Service |
Customer Reviews
Train Outdoors Year-Round
- Built for outdoor training with a focus on durability and long-term use.
- Hot-dip galvanized, surface-treated, and double powder-coated steel with a lifetime warranty.
- Multiple anchoring options support stable training on any surface.
- Modular system based on the proven R8 platform allows flexible setup and expansion.
- Compatible with a wide range of outdoor accessories like the Outdoor Bench, made fully from stainless steel with a waterproof pad, and the stainless steel INOX barbell.
- 255 cm height supports full range of motion for pull-ups and muscle-ups, even for taller athletes.
Hot-Dip Galvanized for Full Corrosion Protection
- Hot-dip galvanization protects the steel inside and out, unlike standard surface coatings.
- Immersion in molten zinc creates a multi-layer protective coating bonded to the steel.
- This process forms a durable zinc-iron layer that resists corrosion and weather exposure.
R8 JadeWall Outdoor Wall Rack
- Wall-mounted design with 75x75x3 mm steel profile and 78 cm crossbars for secure installation.
- Space-efficient setup supports all core barbell lifts, including squats, bench press, and shoulder press.
- Includes J-Hooks and triangle pull-up bar.
- Compatible with R8 modular expansions and optional attachments, including safety spotter arms, dip bar, and weight pins.
- Recommended for use with Grip Plates for outdoor training.
Stable on Any Surface
- Designed for secure installation across different ground types.
- Mounts to concrete using M12 bolt anchors.
- Can be stabilized on grass, soil, or gravel using skid plates.
- Jade and JadeWall require point foundations with M12 anchors or ground anchors.
- Outdoor setup details coming soon.
- Optional 100x100x4 cm floor mats allow quick setup of a stable, level training area.
article ID
| SKU | 555-2335 |
| EAN | 4262446354222 |
Dimensions & Footprint
| Height | 255cm |
| Width | 123cm |
| Depth | 78cm |
| Net Weight | 95kg |
| Length | NA |
Load Capacity
| Upright Posts and Crossbars | Tested for Tensile Strength and PSI Load, Up to 1,500kg |
| Pull-Up Bar | Tested for Tensile Strength, Up to 400kg |
| J-Hooks | Drop Tested, Up to 450kg per J-Hook |
Base Frame
| Steel Type | Alloy Steel |
| Square Tube | 75mm x 75mm |
| Steel Thickness | 3mm |
| Coating | Hot-Dip Galvanized, Surface Treated and Double Powder Coated |
| Corrosion Resistance | Hot Dip Galvanized |
Hole Pattern & Compatibility
| Hole Grid | 50mm |
| Hole (Pin) | 25mm |
| Hole Spacing | 50mm |
| Numbering and Scaling | Laser Engraved Settings + Ultra-Fine Adjustment Settings on Crossbars |
| Weight Plate Compatibility | 30mm and 50mm |
Attachments/Accessories
| R8 JadeWall Outdoor Wall Rack, Hot-Dip Galvanized & Powder-Coated | 1x |
Ground Anchoring, Stabilization
| Type of Anchoring, Stabilization | Optional on the product page: a) M12 Bolt Anchors, b) Skid Plates |
| Foundation Note | Concrete for potential installation of a spot or strip foundation is not included in the delivery! |
Warranty & Certification
| Basic Frame Warranty | Lifetime |
| Attachment Warranty | 5 Years |
| Approval | EN 20957 S , Suitable for Studio and Commercial Use |
Delivery & Installation
| Shipping | Palletized Freight Delivery |
| Scheduled Freight Delivery | Email Notification with Scheduling Options |
| Assembly Time | 1Hr, Two Person Assembly |
Service & Return Policy
| Return Policy | 100 Days after Purchase |
| Return Process | Scheduled Freight Pickup |
Included Services
| Training Plan and Equipment Support | 1 Hour Online Consultation Included |
| Quick Troubleshooting Service | 7-Day Remote Help Service |
